Durable 17-24 Inch Kraft Corrugated Stock Boxes
Durable 17-24 Inch Kraft Corrugated Stock Boxes
SKU:CLE-f0c8cf
Strong and eco-friendly 17-24" Stock Boxes made from 200#/ECT-32-C flute, kraft corrugated material. Save space with flat shipping and storage. 100% recyclable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Durable 17-24 Inch Kraft Corrugated Stock Boxes
$29.99
Quantity: 1
Claim Your Seller Account
Durable 17-24 Inch Kraft Corrugated Stock Boxes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our 17-24" Stock Boxes are crafted from robust 200#/ECT-32-C flute, kraft corrugated material, ensuring sturdy construction for your shipping and storage needs. Designed to save space, these cartons ship and store flat. Sustainability is at the core of our products, as these corrugated cartons are 100% recyclable. With dimensions of 24 x 10 x 4 inches, these boxes are versatile for a variety of applications in the Materials > Corrugated Boxes category.
Product Specifications

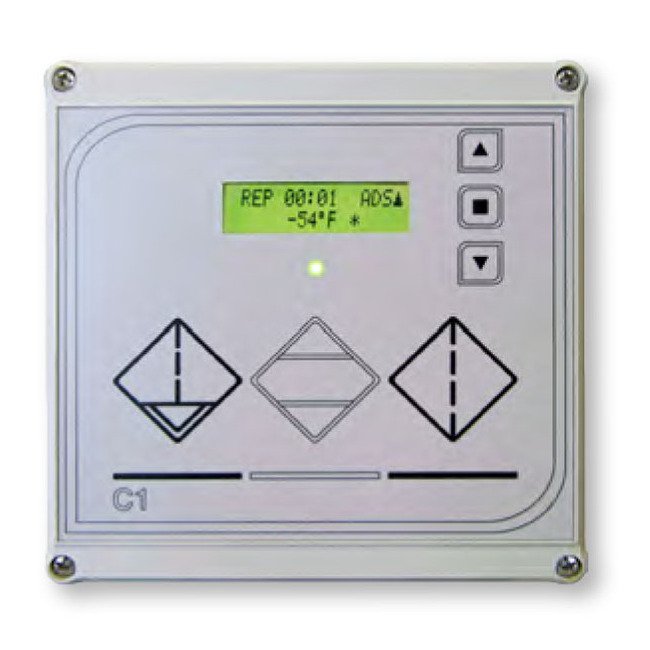

Advanced C1 Controls 0
A powerful controller monitors and controls each D-Series4 high pressure desiccant air dryer. The system monitors multiple inputs, showing pertinent data on the two line clear text display and controlling the fully automated drying and regeneration cycles. Input is via three buttons on the front of the NEMA-4X corrosion resistant enclosure.An energy saving compressor synchronization contact is provided to stop the dryer from cycling when the compressor is not operating.ES Energy Saving Option - The optional âESâ dew point demand system uses a reliable precision hygrometer to continually monitor the outlet dew point and extend the cycle for maximum energy savings. Includes real time outlet dew point indication on the panel, a 4-20 mA signal for remote monitoring and a high dew point alarm.
Cost Effective Design 0
Efficient nano pre and after filters combined with high quality desiccant for low pressure drop and consistent dew point performance.
Customized To Meet Your Needs 0
At nano we understand every customer and every application is different. For this reason, we provide a wide range of available options to customize your dryer to your specific needs.

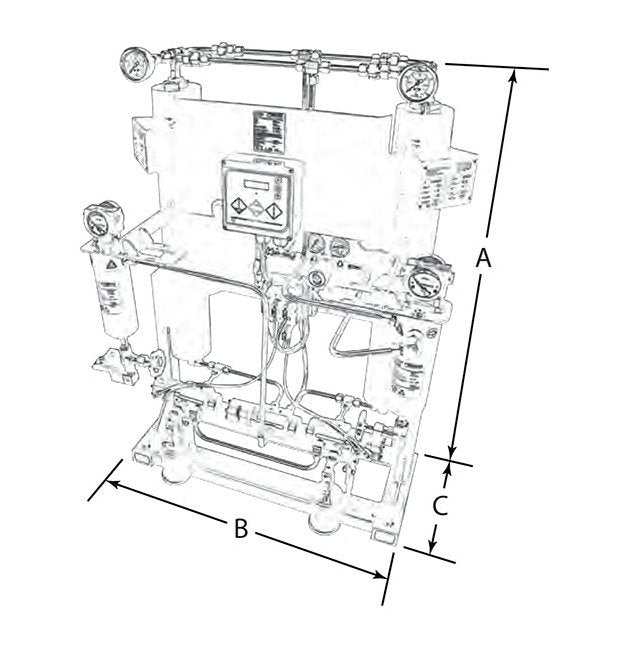

Dimensions Dimension A
48 in
Dimensions Dimension B
27 in
Dimensions Dimension C
15.8 in
Financing Approve Payments
Finance with Approve Payments
Flexible And Functional 0
The fixed orifice is dependable and trouble-free and the optional Energy Saver dew point demand control system allows the flexibility to dial your dew point performance.Advanced C1 controls allow you to monitor the operation of the dryer through an easy to read two line clear text display.
High Quality Construction 0
Rugged field proven anodized aluminum valve blocks eliminate leak paths and minimize pressure loss.Primed and acrylic resin coated external surfaces for optimum corrosion protection.

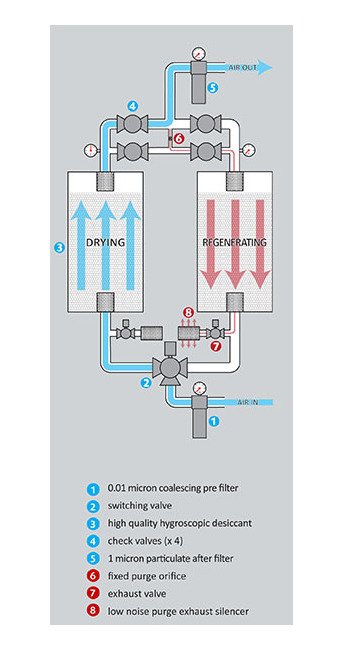

How It Works 0

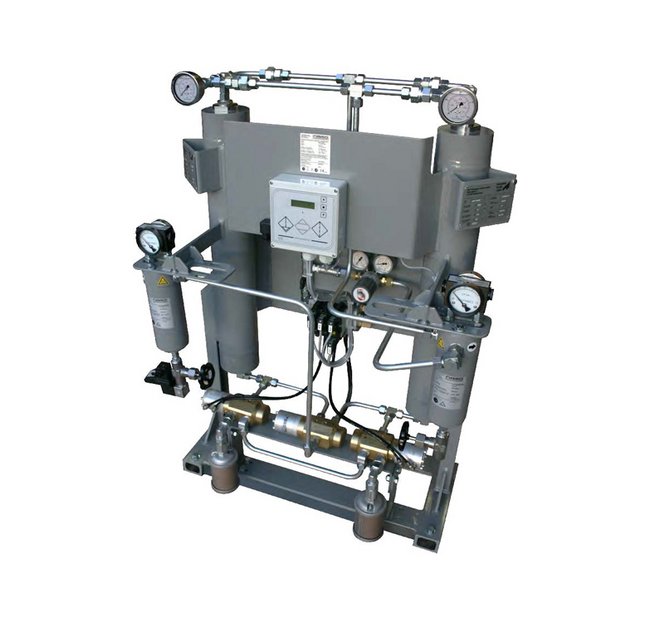

The advanced nano D-Series4 high pressure compressed air dryers use the pressure swing adsorption principle to efficiently dry compressed air.Incoming wet air passes through a high efficiency coalescing filter which removes particulate and aerosols down to 0.01 micron with greater than 99.9999% efficiency. The air is then directed to one of the two media vessels where water vapor is adsorbed by a two layer desiccant bed. The dry air then passes through the outlet check valve and a 1 micron particulate after filter to remove any media dust it may have collected.Simultaneously, a small amount of the dry air (approximately 5% of the rated flow) is expanded to atmospheric pressure across an orifice and passed backwards through the off line desiccant bed for regeneration. Regeneration air is exhausted to atmosphere through a silencer.The entire dryer operation is controlled by the advanced C1 controller which switches the flow from one vessel to the other every 10 minutes or as directed by the optional dew point demand system.
Materials Of Construction Frame And Supports
Carbon Steel
Materials Of Construction Media
20% WS Silica Gel | 80% 4A Molecular Sieve
Materials Of Construction Piping And Fittings
316 Stainless Steel
Materials Of Construction Valve Block Housing
Anodized Aluminum
Materials Of Construction Valve Seats
Brass | Stainless Steel
Materials Of Construction Vessels
Carbon Steel
Optional Accessories Differential Pressure Alarm Contacts
Provides a remote alarm signal for differential pressure across the pre or after filters.
Optional Accessories Outlet Pressure Valve
Builds up pressure within the dryer during start up to prevent damage from high flow velocities.
Optional Accessories Remote Monitoring System
Sends text messages or emails to up to six different mobile devices in the event of an alarm.
Specifications Alternating Current Ac Voltage
120 V | 240 V
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Control Panel Protection
NEMA 4X
Specifications Design Operating Temperature Range
35 to 140 ºF
Specifications Direct Current Dc Voltage Optional
24 V
Specifications Enclosure Standard
NEMA 4X
Specifications Flow Capacity
177 scfm | 300 Nm³/h
Specifications Industry Standardscertifications
ISO
Specifications Inlet And Outlet Connection Size
1/2 in
Specifications Maximum Oil Content For Iso Class 1
0.01 mg/m³
Specifications Maximum Operating Pressure
5075 psi
Specifications Maximum Particle Size For Iso Class 2
1 µm
Specifications Minimum Operating Pressure
435 psi
Specifications Outlet Pressure Dew Point Maximum Water Content F
-40 ºF
Specifications Outlet Pressure Dew Point Optional
-13 to -67 ºF
Specifications Power Consumption
< 50 W
Specifications Power Supply Frequency
50 Hz | 60 Hz
Specifications Recommended Operating Temperature Range
40 to 100 ºF
Specifications Shipping Weight
320 lb
Specifications Valve Switching Power Per Valve
80 V·A
Specifications Warranty
1 years
