Durable 3-Inch Universal Beaded Coupling
Durable 3-Inch Universal Beaded Coupling
SKU:BEA-a6a801
Reliable 3" Beaded Coupling with Stainless Steel Shell & Elastomer Sleeve for High-Temperature Applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Durable 3-Inch Universal Beaded Coupling
$49.99
Quantity: 1
Claim Your Seller Account
Durable 3-Inch Universal Beaded Coupling
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

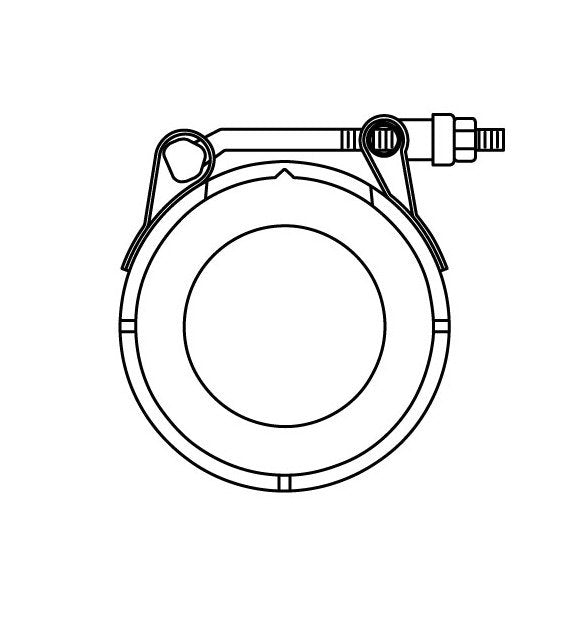

The Universal Beaded Coupling is a robust solution for industrial applications, featuring high-quality materials like 300 series stainless steel for the shell, nut, bolt, and washer. Its elastomer sleeve is designed for temperatures up to 275ºF, maintaining a reliable seal even at 3º deflection. The virgin TFE liner ensures exceptional performance and longevity. With an outer diameter of 4 3/8 inches and precise dimensions, this coupling guarantees secure connections and efficient operations in challenging environments.
Product Specifications
Specifications Bolt Material
300 Series Stainless Steel

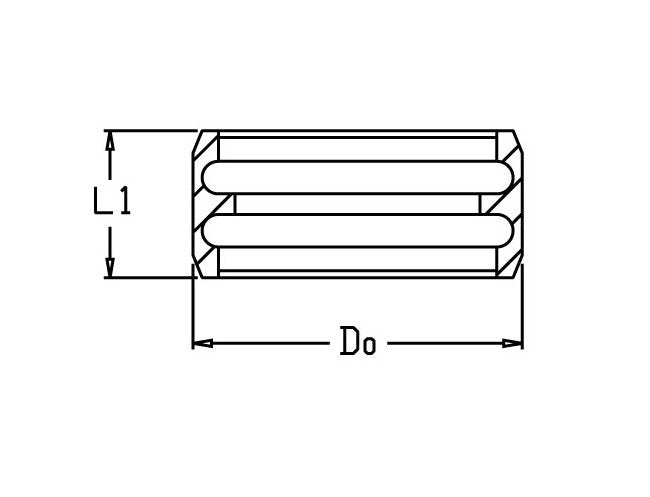

Specifications Dimension L1
1 5/8 in
Specifications Gasket Thickness
3/16 in
Specifications Liner Material
Virgin TFE
Specifications Nut Material
300 Series Stainless Steel
Specifications Outer Diameter D0
4 3/8 in
Specifications Shell Material
300 Series Stainless Steel
Specifications Size
3 in
Specifications Sleeve Material
Elastomer
Specifications Washer Material
300 Series Stainless Steel
