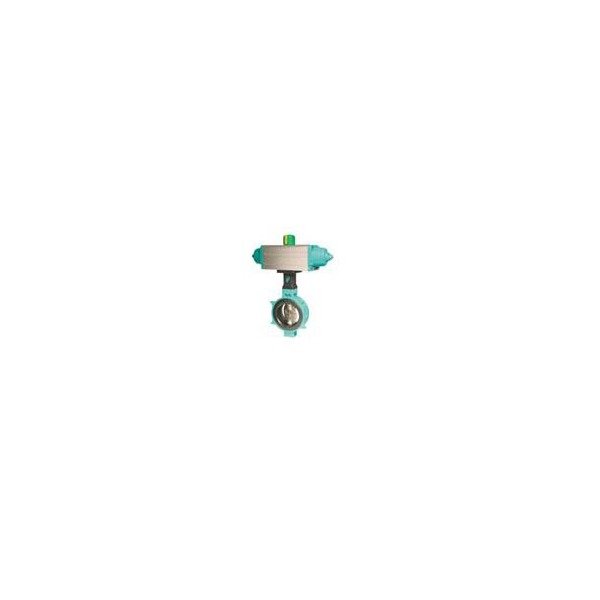

Durable Anti-Condensation Aluminum Butterfly Valve 773Z
Durable Anti-Condensation Aluminum Butterfly Valve 773Z
SKU:VAL-78d16a
Revolutionary butterfly valve preventing condensation for industrial fluid control.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Durable Anti-Condensation Aluminum Butterfly Valve 773Z
$249.99
Quantity: 1
Claim Your Seller Account
Durable Anti-Condensation Aluminum Butterfly Valve 773Z
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

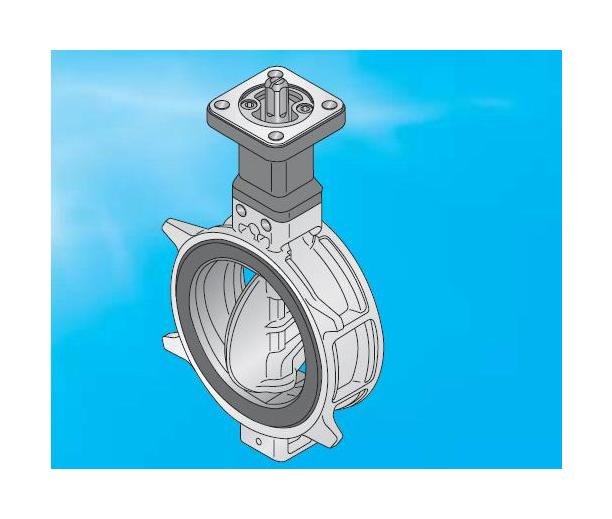

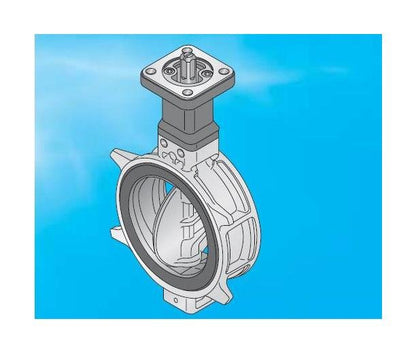

The New Anti-Condensation Aluminum Diecast Butterfly Valve Series 773Z is a cutting-edge solution for industrial fluid control. Its aluminum diecast body, combined with a high-performance engineering plastic top plate, prevents condensation formation, ensuring reliable auto-actuation under various conditions. With a design standard compliant with JISB2032, a maximum working pressure of 1.0 MPa, and a wide working temperature range, this valve excels in performance. The epoxy-melanin baked body surface treatment and multiple actuator options make it versatile for different applications.
Product Specifications

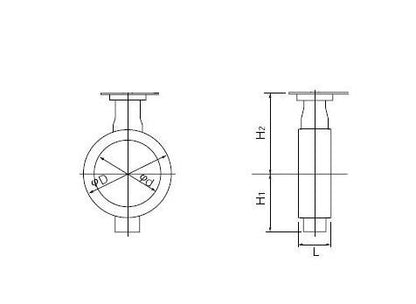

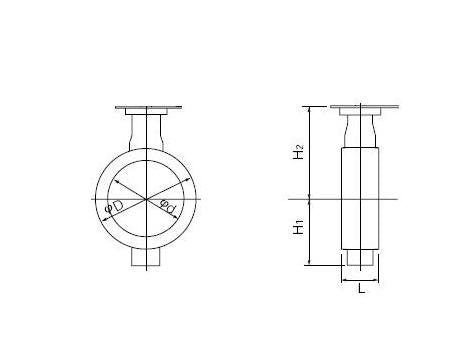

Dimensional Information D
147 mm
Dimensional Information H1
98 mm
Dimensional Information H2
167 mm
Dimensional Information L
52 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
38 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U5/8
Flange Information Ansi 125lb150lb Long Bolts Length
150 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
38 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
30 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
110 mm
Flange Information Jis 10k Long Bolts And Nuts
M16
Flange Information Jis 10k Long Bolts Length
130 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Long Bolts
8
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
38 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
30 mm
Flange Information Jis 5k Hexagon Boltsnuts
M16
Flange Information Jis 5k Hexagon Boltsnuts Length
105 mm
Flange Information Jis 5k Long Bolts And Nuts
M16
Flange Information Jis 5k Long Bolts Length
130 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
8
Flange Information Jis 5k Number Of Long Bolts
8

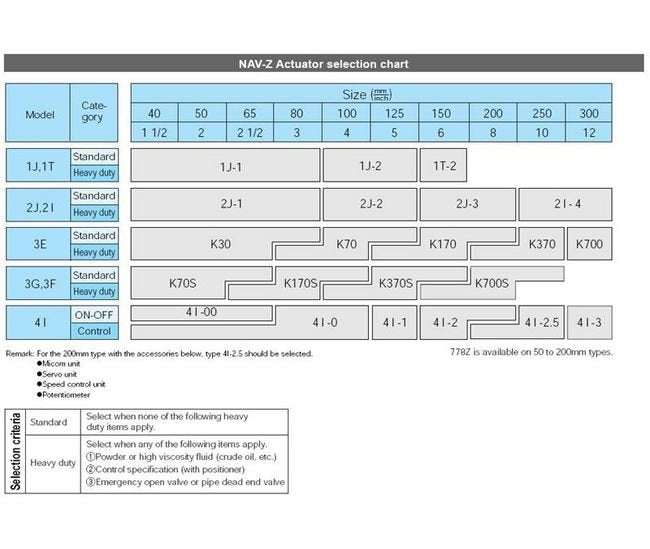

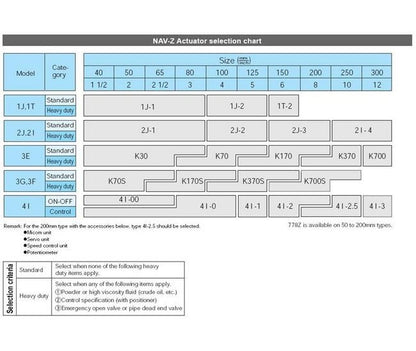

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Lock Lever | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K170S | K370S | K70
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
100 - 4"
Specifications Stem Material
Stainless Steel Type 420J2
