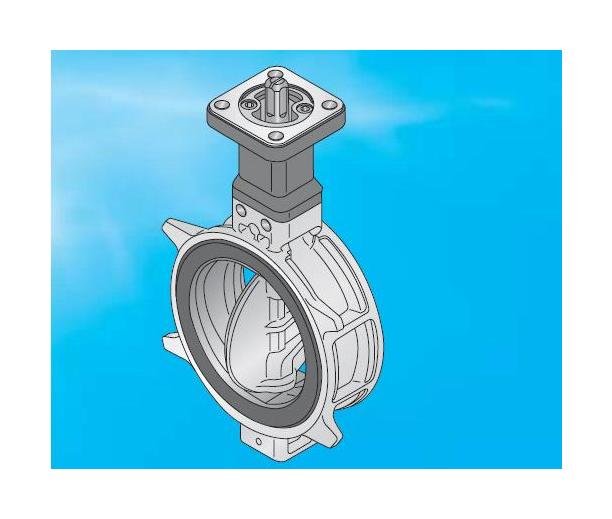

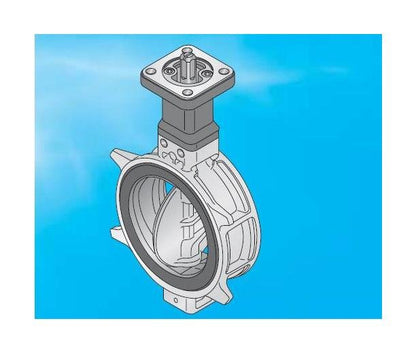

Experience superior condensation prevention with our advanced Aluminum Diecast Butterfly Valve - Series 773Z, featuring a high-performance engineering plastic top plate for auto-actuation. Designed to withstand temperatures ranging from -20°C to +120°C, this valve exceeds JISB2032 standards, offering reliable performance under pressure. The patented design ensures no dew condensation on the actuator and mounting flange, ideal for critical industrial applications.
Product Specifications

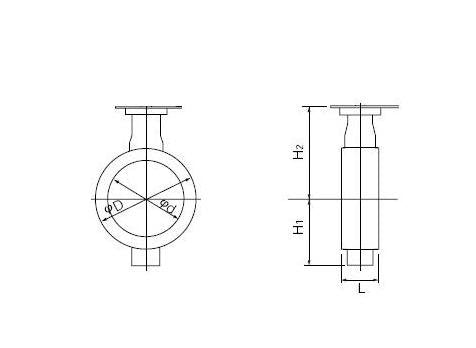

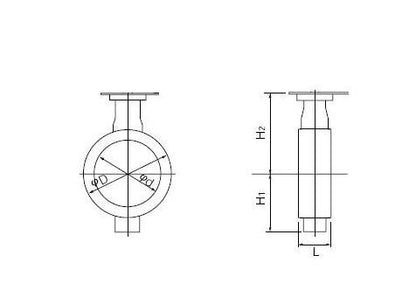

Dimensional Information D
178 mm
Dimensional Information H1
115 mm
Dimensional Information H2
191 mm
Dimensional Information L
56 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
51 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U3/4
Flange Information Ansi 125lb150lb Long Bolts Length
160 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
46 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
40 mm
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
125 mm
Flange Information Jis 10k Long Bolts And Nuts
M20
Flange Information Jis 10k Long Bolts Length
150 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Long Bolts
8
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
38 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
30 mm
Flange Information Jis 5k Hexagon Boltsnuts
M16
Flange Information Jis 5k Hexagon Boltsnuts Length
110 mm
Flange Information Jis 5k Long Bolts And Nuts
M16
Flange Information Jis 5k Long Bolts Length
130 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
8
Flange Information Jis 5k Number Of Long Bolts
8

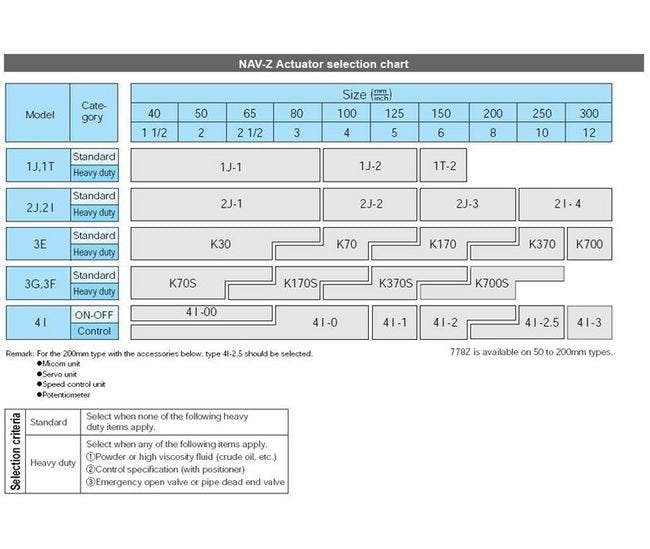

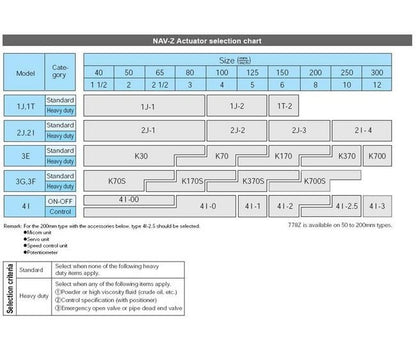

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Lock Lever | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K170 | K370S | K70
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
125 - 5"
Specifications Stem Material
Stainless Steel Type 420J2
