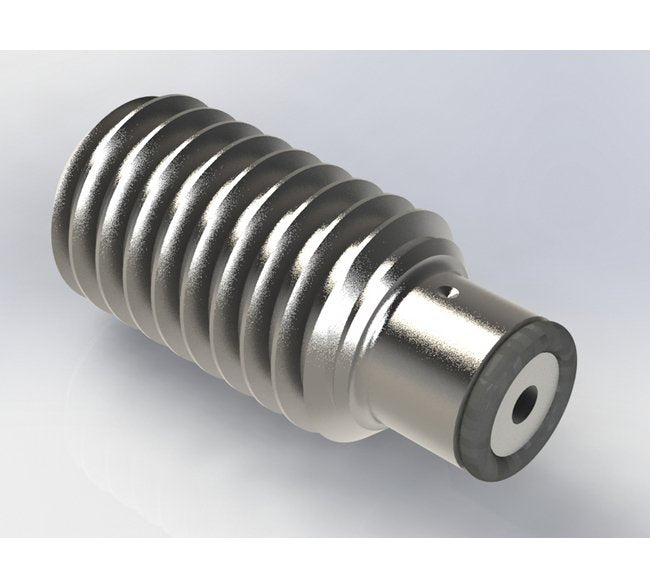

Durable Check Valves with Threaded Inserts

Name: Durable Check Valves with Threaded Inserts
Brand: O'Keefe Controls Co.
SKU: CHE-8a6e6a
Price: 39.99 USD
Availability: OutOfStock

SKU:CHE-8a6e6a

Upgrade your fluid control system with reliable Check Valves, perfect for institutional and government procurement.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your fluid control system with our durable Check Valves featuring a Nitrile seal, 440C-SS Ball Material, and 303 SS construction. With a maximum operating pressure of 1400 kPa, these valves ensure reliable and leak-free performance. Ideal for institutional and government procurement needs.

Product Specifications

Dimensions Nose Diameter

5.59 mm

Dimensions Orifice Diameter

0.0730 in | 1.85 mm

Dimensions Thread Size

Dimensions Total Length

16.3 mm

Dimensions Width Across Flats Hex

4 mm

Features Features

All metal construction option Long life operation Low cost

Specifications Ball Material

440C-SS

Specifications Connection A

M8 Threaded Insert O-Ring seal

Specifications Cv

0.120

Specifications Hex Type

Internal

Specifications Material

303 SS

Specifications Maximum Operating Pressure

1400 kPa

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Nitrile

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Specifications Thread

Male
