Durable Donaldson® Torit® Modular Baghouse Dust Collector - 4760 ft² Bag Cloth Area
Durable Donaldson® Torit® Modular Baghouse Dust Collector - 4760 ft² Bag Cloth Area
SKU:MOD-55e8d8
Efficient and reliable dust collector with Dura-Life™ bag filters, ideal for institutional buyers
Regular price
$29,999.00
Regular price
Sale price
$29,999.00
Unit price
per
Initiate Order
Durable Donaldson® Torit® Modular Baghouse Dust Collector - 4760 ft² Bag Cloth Area
$29,999.00
Quantity: 1
Claim Your Seller Account
Durable Donaldson® Torit® Modular Baghouse Dust Collector - 4760 ft² Bag Cloth Area
$29,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model MBT Modular Baghouse 4760 Square feet Dust Collector by Donaldson® Torit® offers exceptional performance with its Dura-Life™ bag filters, ensuring longer bag life and reduced emissions. With 297 bags and 33 valves, this collector is designed for continuous, efficient pulse-jet operation. Additional features include Ultra-Web® Pleated Bag Options, easy maintenance, and integral fan option, providing reliable service and optimal airflow. Ideal for institutional buyers seeking high-quality, durable dust collection solutions.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

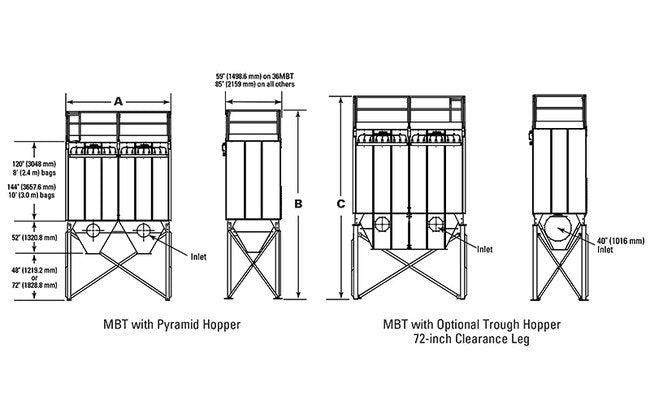

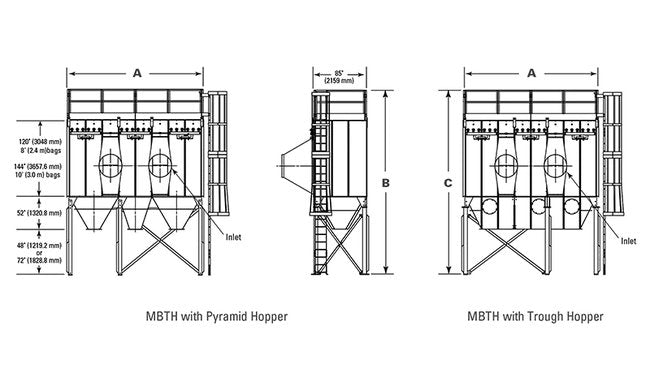

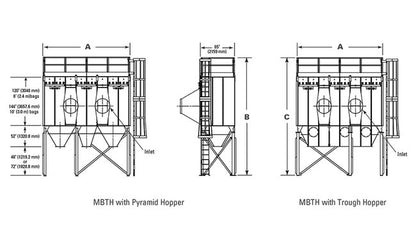

Dimensions Dimension A Mbtmbw
371.0 in | 9423.4 mm
Dimensions Dimension B Mbt 48 In
292.3 in | 7424.4 mm
Dimensions Dimension B Mbt 72 In
316.3 in | 8034.0 mm
Dimensions Dimension C Mbt
316.3 in | 8034 mm
Dimensions Dimension D Mbt 48 In
342.1 in | 8689.3 mm
Dimensions Dimension D Mbt 72 In
366.1 in | 9298.9 mm
Dimensions Dimension E Mbw
366.1 in | 9298.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
4760 ft² | 442.2 m²
Specifications Number Of Bags
297
Specifications Number Of Valves
33
Specifications Plated Bag Media Area 20 Inch In Uw
3505 ft² | 325.6 m²
Specifications Plated Bag Media Area 40 Inch In Uw
7009 ft² | 651.2 m²
Specifications Plated Bag Media Area 60 Inch In Uw
10514 ft² | 976.8 m²
Specifications Plated Bag Media Area 80 Inch In Uw
14048 ft² | 1305.1 m²
Specifications Shipping Weight
21924 lb | 9944.6 kg
Specifications Warranty
10 years
