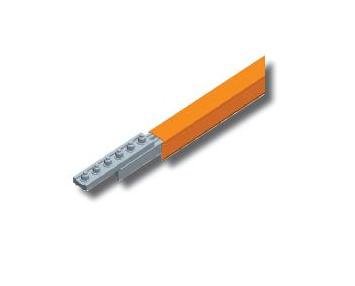

Durable DURA-COAT PVC Conductor Bar with Splice Installed
Durable DURA-COAT PVC Conductor Bar with Splice Installed
SKU:CRA-b81ee3
Durable PVC Conductor Bar for corrosive environments, 500A, 600V, easy installation, compliant
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Durable DURA-COAT PVC Conductor Bar with Splice Installed
$599.99
Quantity: 1
Claim Your Seller Account
Durable DURA-COAT PVC Conductor Bar with Splice Installed
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DURA-COAT Conductor Bar with Splice Installed is designed for reliable performance in highly corrosive environments. With an Amperage Rating of 500 A and a Maximum System Voltage of 600 V, this PVC conductor bar ensures efficient power distribution. The included splice offers easy installation and secure connections. Its durable construction, featuring a ground/indoors green cover, supports a maximum temperature of 160 °F. With a range of available accessories and compliant with industry standards, this conductor bar is a versatile solution for Crane Control & Electrification applications.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Thermostatically controlled heater wire system, for ice and snow environments | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Ground / Indoors (Green)
Specifications Cross Sectional Area
0.45 in²
Specifications Length
30.0 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
8 ft
Specifications Phase Corrected Impedance Z At 20 C
5.40 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
3.27 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
5 ft
Specifications Weight
25.0 lb
