Durable Electric Actuator by Duravalve
Durable Electric Actuator by Duravalve
SKU:ACT-4f5bf4
Reliable Duravalve Electric Actuator with dual SPDT limit switches, versatile voltage options, and optional features for precise control.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Durable Electric Actuator by Duravalve
$499.99
Quantity: 1
Claim Your Seller Account
Durable Electric Actuator by Duravalve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

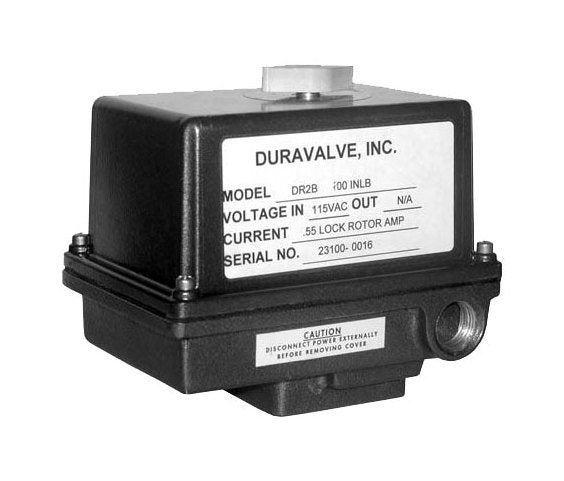

The Duravalve Electric Actuator offers reliable performance with 10 different sizes and an output torque range of 100-5000 in-lbs. Featuring NEMA 4 Watertight Standard enclosures (NEMA 7 Explosion Proof Optional), this actuator is built with durable materials like cast aluminum and stainless steel. It operates on voltages including 115 VAC, 240/24 VAC, and 12/24 VDC, with thermal overload protection and wired for light indication. With dual SPDT limit switches and optional features like additional limit switches and motor brake, this actuator ensures precise and safe operation. CSA Certified and suitable for a wide temperature range, the Duravalve Electric Actuator is a versatile choice for various applications.
Product Specifications
Specifications 90 Deg Time
15 sec
Specifications Approximate Weight
13 lbs (NEMA 7 16)
Specifications Duty Cycles
25 %
Specifications Iso 5211 Mtg Pattern
F07/17
Specifications Locked Rotor Current
1.1 A
Specifications Manual Override
STD. NEMA 4 (Optional NEMA 7)
Specifications Output Torque
1000 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
