Durable High-Fidelity Audio Transformers
Durable High-Fidelity Audio Transformers
SKU:AUD-748714
Experience unparalleled reliability and precision with Triad's high-fidelity audio transformers. Designed to excel in demanding applications with superior construction and RoHS compliance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Durable High-Fidelity Audio Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Durable High-Fidelity Audio Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Engineered for reliability, Triad's high-fidelity audio transformers offer unmatched durability and precision for demanding designs. With a power level of 50 mW, matching impedance of 600 Ohms, and excellent DC resistance characteristics, these transformers excel in various applications. Operating within a wide temperature range of -40 to 85 ºC, these transformers are built for longevity and consistent performance. The construction features precision plug-in terminals, epoxy-molded case for solder inspection ease, and RoHS compliance since February 2005.
Product Specifications
Construction Construction

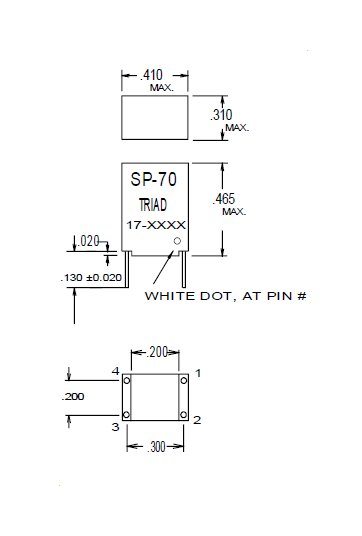

Plug-in terminals are precision spaced to provide fixed mounting centers. Epoxy molded case includes a 0.020" recess for ease of solder inspection. Leads are Tin plated 0.020" in diameter.
Electrical Specifications At 25 Degree Celsius C Temperature Dc
92.0 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Mat
600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
3.0 V
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1.0:1.0
Electrical Specifications At 25 Degree Celsius C Temperature Pow
50 mW
Note Note

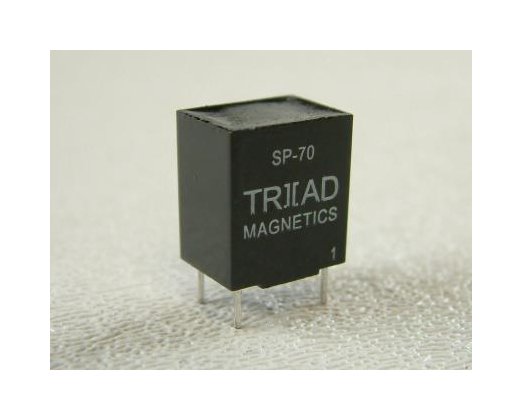

SP-70-S product is marked SP-70, but packaging is marked SP-70-S.
Rohs Compliance Rohs Compliance
As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative.
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Pri Sec Hipot Test Pri Sec
1,500 VRMS for 1 Second
Specifications Storage Temperature
-55 to 105 ºC
Specifications Working Direct Current Dc Voltage
150 V
