Durable Male Stud Non Return Valve with Elastomer Seal Thread BSP - Institutional Grade

Name: Durable Male Stud Non Return Valve with Elastomer Seal Thread BSP - Institutional Grade
Brand: World Wide Metric, Inc.
SKU: FIT-ddd1f4
Price: 89.99 USD
Availability: OutOfStock

SKU:FIT-ddd1f4

Durable Male Stud Non Return Valve for heavy-duty applications, pressure rated up to 400 bar.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

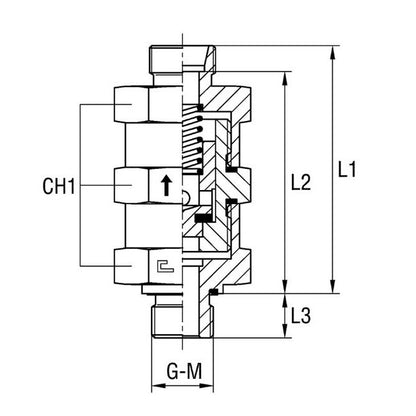

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is engineered for heavy-duty applications, with a nominal operating pressure of 400 bar. Crafted from high-quality carbon steel, this valve ensures long-lasting performance and reliability. Featuring precise dimensions of Tube Diameter: 20.0 mm, G - Thread Size: 3/4, L1: 85.0 mm, L2: 74.5 mm, L3: 16.0 mm, CH1: 50 mm, and Diameter Pass: 16 mm, it meets stringent institutional procurement standards.

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

16 mm

Specifications G Thread Size

3/4

Specifications L1

85.0 mm

Specifications L2

74.5 mm

Specifications L3

16.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Tube Diameter

20.0 mm

Durable Male Stud Non Return Valve with Elastomer Seal Thread BSP - Institutional Grade
