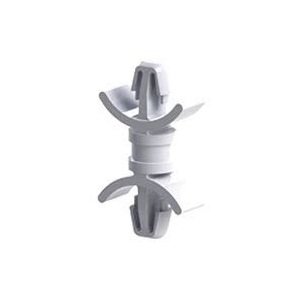

Durable Nylon Dual Locking Board Support – 01A Series
Durable Nylon Dual Locking Board Support – 01A Series
SKU:01C-99acef
Enhance circuit board stability and durability with the 01A Series Dual Locking Board Support made of Nylon 66 UL94V-2 material. RoHS compliant and suitable for diverse temperature ranges.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Durable Nylon Dual Locking Board Support – 01A Series
$24.99
Quantity: 1
Claim Your Seller Account
Durable Nylon Dual Locking Board Support – 01A Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

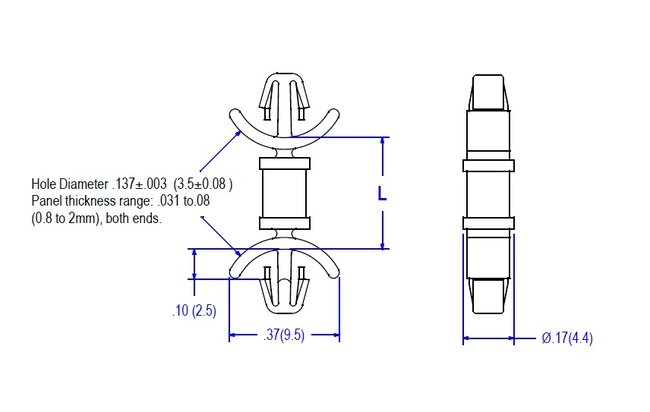

The 01A Series Dual Locking Board Support is designed with a mounting hole diameter of .137 inches, suitable for both board and chassis ends with a thickness range of .031-.08 inches. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is releasable for repairs, RoHS compliant, and can withstand a temperature range of -40 to 185F (-40 to 85C). With ASTM D 4066, PA0113 certifications, this support ensures quality and durability for your circuit board needs.
Product Specifications
Specifications L 015
.500 (12.7) inches (mm)
