Durable PN 16 Cast Steel Angle Regular Valve - 020 Size
Durable PN 16 Cast Steel Angle Regular Valve - 020 Size
SKU:VAL-a34762
High-performance PN 16 Cast Steel Angle Valve for industrial fluid control.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Durable PN 16 Cast Steel Angle Regular Valve - 020 Size
$149.99
Quantity: 1
Claim Your Seller Account
Durable PN 16 Cast Steel Angle Regular Valve - 020 Size
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle Regular Valve is a robust industrial valve designed for durability and efficient hydraulic performance. Constructed with high-quality materials such as Cast Steel body, Brass stem, Stainless Steel disc, and Brass seat, this valve ensures reliable operation in demanding environments. With DIN and ISO standard compliance, along with precision engineering, this valve offers optimal fluid control and longevity.

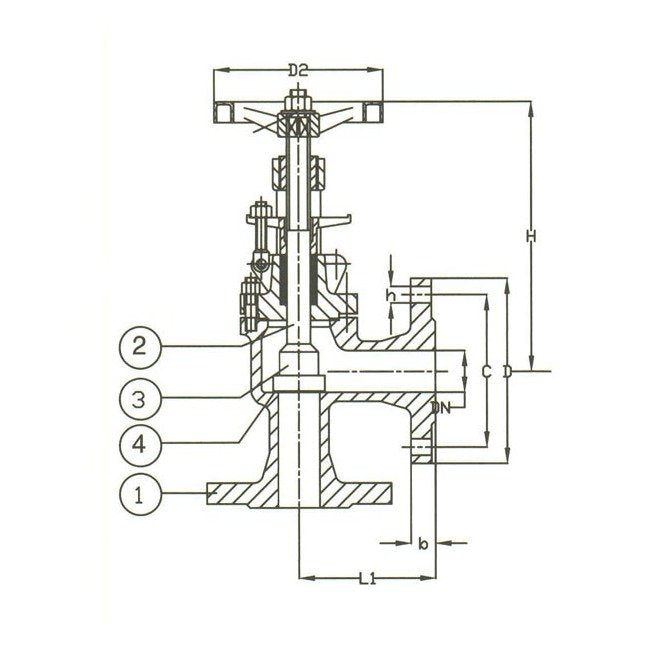

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
75 mm
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
135 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
95 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
020
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
4.5 kg
