Durable S Ball Joint for Cablecraft Hardware

Name: Durable S Ball Joint for Cablecraft Hardware
Brand: Lexco Cable Manufacturing
SKU: PUS-8fdbbb
Price: 24.99 USD
Availability: OutOfStock

SKU:PUS-8fdbbb

Enhance linkage systems with our durable S Ball Joint for versatile applications. SAE J490 compliant with easy disconnect feature.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

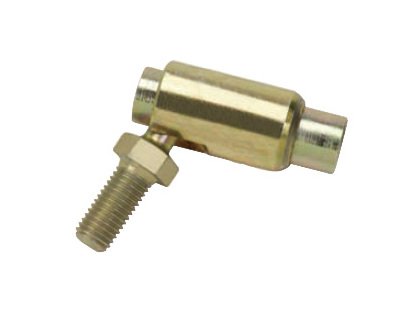

The S Ball Joint from our S/SS/SC Ball Joints line is designed for light to medium-duty linkage applications, making it ideal for cable assemblies, industrial equipment, agriculture, and racing needs. Crafted with precision using low carbon steel, stainless steel components, and yellow dichromate treatment, this quick disconnect ball joint ensures reliable performance in extreme temperatures (-60 Ã‚ÂºF to 250 Ã‚ÂºF). With three configurations available, including right and left-handed versions, maintenance becomes a breeze with its tool-free disconnect feature. Certified to meet SAE J490 standards, this ball joint offers custom sizing options, providing tailored solutions for your specific requirements.

Product Specifications

Applications 0

Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)

Features 0

Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ÂºF - 250 ÂºF (-51 ÂºC - 121 ÂºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)

Material 0

Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

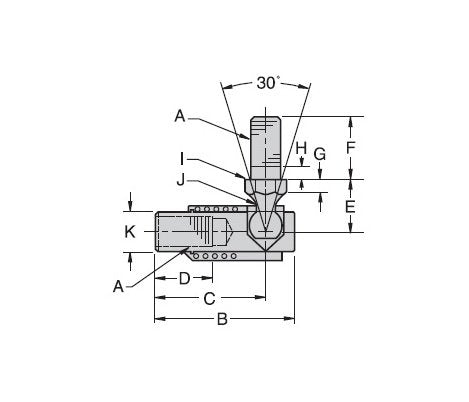

Specifications A Unf

1/4-28 "

Specifications Ball Diameter Ref

0.253 "

Specifications B 0020

1.094 "

Specifications C 0020

0.906 "

Specifications D Min

0.531 "

Specifications E 0020

0.469 "

Specifications F 0020

0.562 "

Specifications G Ref

0.141 "

Specifications H Ref

0.062 "

Specifications I Ref

0.312 "

Specifications J Ref

0.171 "

Specifications K Ref

0.312 "

Specifications Temperature Range

-60 to 250 ÂºF | -51 to 121 ÂºC

Specifications Type

CAGE

0T9L4

NAICS

332510

PSC

4030
