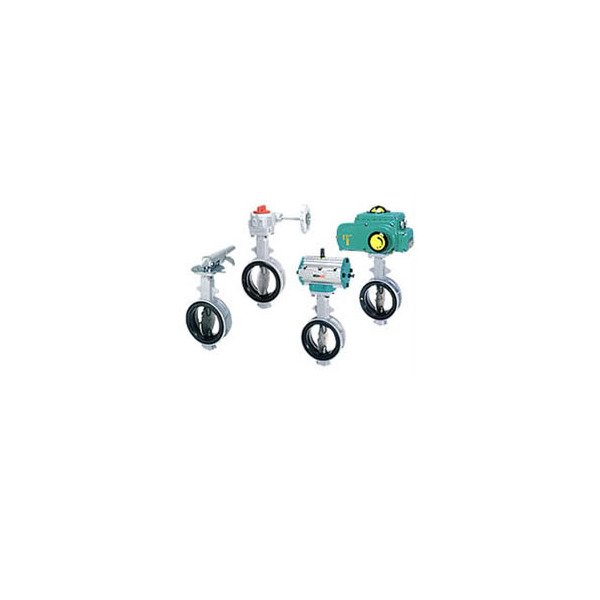

Durable Series 700G Wafer Butterfly Valves
Durable Series 700G Wafer Butterfly Valves
SKU:VAL-abd271
Enhanced Series 700G Butterfly Valves for durability and performance in diverse industrial settings.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Durable Series 700G Wafer Butterfly Valves
$99.99
Quantity: 1
Claim Your Seller Account
Durable Series 700G Wafer Butterfly Valves
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 700G Wafer Butterfly Valves offer superior performance and durability for a wide range of industrial needs. With options for various materials in discs and seats, these valves meet international flange standards and come in wafer, semi-lugged, and full-lugged designs. The patented cosine-curve seat ring reduces operating torque, extending valve life by 300%. Self-aligning stem seals and a choice of disc materials cater to specific requirements, including PPS for corrosive fluids. These valves offer smooth operation, reduced torque, and unparalleled reliability.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
25.0 mm
Dimensional Information D
80 mm
Dimensional Information D1
70 mm
Dimensional Information D2
10 mm
Dimensional Information H1
61 mm
Dimensional Information H2
132 mm
Dimensional Information H3
21.5 mm
Dimensional Information L
35.0 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
30-13 mm
Flange Information Ansi 125lb150lb Long Bolts Length
110 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 10E | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
38 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
90 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
30 mm
Flange Information Jis 5k Hexagon Boltsnuts
M12
Flange Information Jis 5k Hexagon Boltsnuts Length
75 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
4
Specifications Actuators
Center Handle | Electric Motor | Lock Lever | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | Carbon Steel JIS SF490A with Nylon Coating
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
040 - 1-1/2"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
1.50 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
