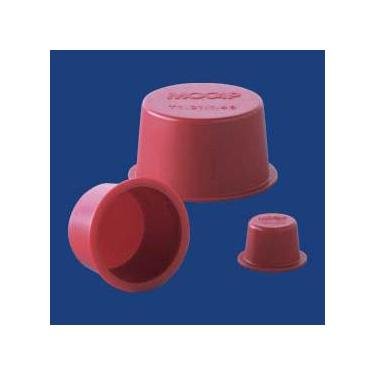

Durable Tapered Plastic Plug Cap for Threaded and Non-Threaded Applications

Name: Durable Tapered Plastic Plug Cap for Threaded and Non-Threaded Applications
Brand: MOCAP LLC
SKU: TAP-db53c0
Price: 29.99 USD
Availability: OutOfStock

SKU:TAP-db53c0

Versatile Tapered Plastic Plug Cap for reliable protection and sealing in various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

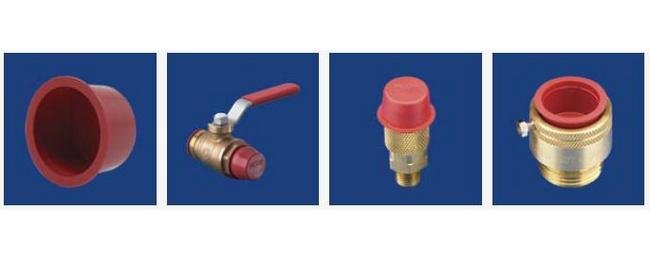

The Durable Tapered Plastic Plug Cap is a versatile dual-function closure offering reliable protection and sealing. Made from tough yet flexible polyethylene, this cap/plug ensures a secure fit while being easy to remove. Ideal for tube and hydraulic fittings, pipe caps, product protection, and more, this cap meets stringent industry standards for durability and functionality.

Product Specifications

Applications 0

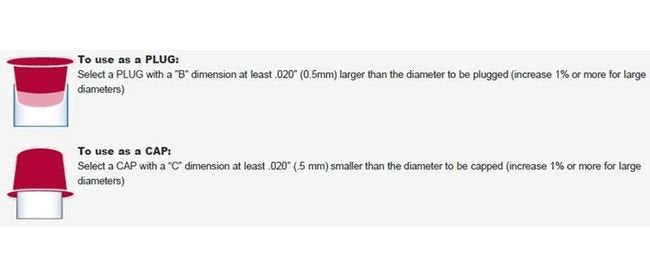

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 inTubesHydraulic FittingsTube End CapsPipe CapsProduct Protection

Features 0

Durable and flexible - Use as a cap or plugProtects against debris, damage, moisture and corrosionMOCAP stocks tapered plastic plug caps in many sizes for immediate shipment

Functions 0

Functions as a Cap : MOCAP T-Series Plastic Plug Cap has a tapered design which allows it to be used as a cap for multiple threaded and non-threaded applications. Review MOCAP's selection of caps.Functions as a Plug : Use MOCAP's Tapered Plug Cap to plug a wide range of openings, including threaded and non threaded holes, pipe and tube end plug, connector ports and fittings. Review MOCAP's selection of plugs.

Manufacturing Notes 0

MOCAP stocks Tapered Plastic Plug Caps in many sizes for immediate shipment.Micro-Packs are only available online.

Masking Applications 0

MOCAP Plug Caps can also be used as inexpensive, single use disposable masking caps or masking plugs for painting, coating and spraying processes up to 175 °F (80 °C). Review MOCAP's complete Line of Masking Products .

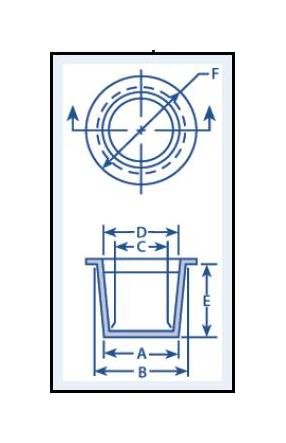

Specifications Box Quantity

2500

Specifications Flange Outer Diameter Dimension F

0.88 in | 22.3 mm

Specifications Large End Inside Diameter Dimension D

0.693 in | 17.6 mm

Specifications Large End Outer Diameter Dimension B

0.755 in | 19.2 mm

Specifications Length Dimension E

0.50 in | 12.7 mm

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

500

Specifications Small End Inside Diameter Dimension C

0.613 in | 15.6 mm

Specifications Small End Outer Diameter Dimension A

0.675 in | 17.2 mm
