Durable Tapered Plastic Plug Cap for Threaded and Non-Threaded Applications

Name: Durable Tapered Plastic Plug Cap for Threaded and Non-Threaded Applications
Brand: MOCAP LLC
SKU: TAP-ae89b0
Price: 29.99 USD
Availability: OutOfStock

SKU:TAP-ae89b0

Versatile Tapered Plastic Plug Cap for thread and hole protection, durable and easy to use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

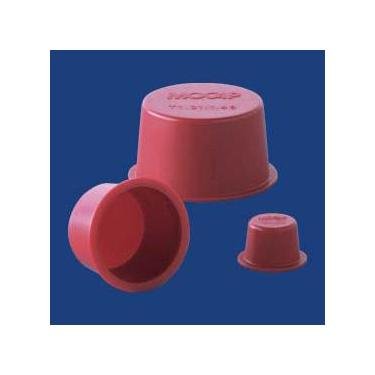

Meet your sealing needs with our Tapered Plastic Plug Cap, versatile and durable for both cap and plug functions. Made from tough polyethylene, these caps provide secure protection against debris, damage, and corrosion. Ideal for tube and hydraulic fittings, threaded holes, and as masking caps for painting processes. Stocked in various sizes for immediate shipment.

Product Specifications

Applications 0

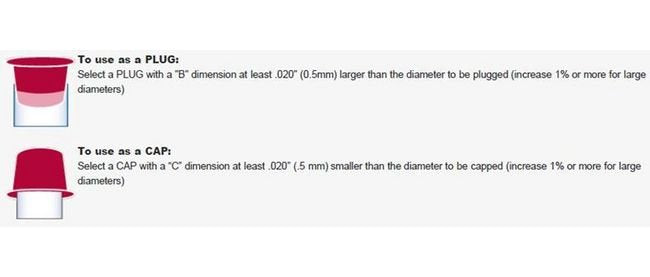

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 inTubesHydraulic FittingsTube End CapsPipe CapsProduct Protection

Features 0

Durable and flexible - Use as a cap or plugProtects against debris, damage, moisture and corrosionMOCAP stocks tapered plastic plug caps in many sizes for immediate shipment

Functions 0

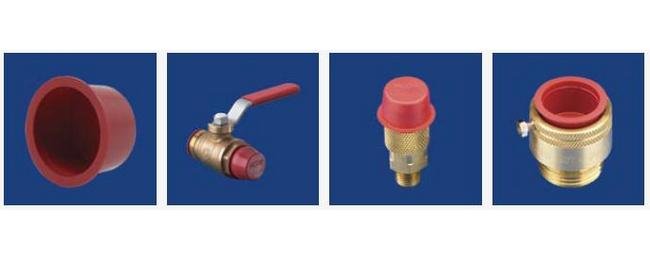

Functions as a Cap : MOCAP T-Series Plastic Plug Cap has a tapered design which allows it to be used as a cap for multiple threaded and non-threaded applications. Review MOCAP's selection of caps.Functions as a Plug : Use MOCAP's Tapered Plug Cap to plug a wide range of openings, including threaded and non threaded holes, pipe and tube end plug, connector ports and fittings. Review MOCAP's selection of plugs.

Manufacturing Notes 0

MOCAP stocks Tapered Plastic Plug Caps in many sizes for immediate shipment.Micro-Packs are only available online.

Masking Applications 0

MOCAP Plug Caps can also be used as inexpensive, single use disposable masking caps or masking plugs for painting, coating and spraying processes up to 175 °F (80 °C). Review MOCAP's complete Line of Masking Products .

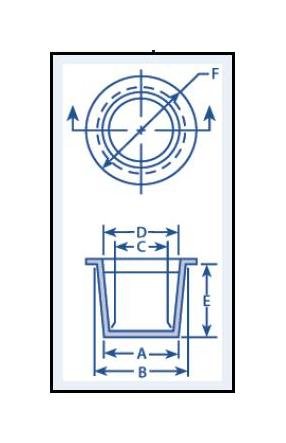

Specifications Box Quantity

Specifications Flange Outer Diameter Dimension F

10.560 in | 268.2 mm

Specifications Large End Inside Diameter Dimension D

10.080 in | 256.0 mm

Specifications Large End Outer Diameter Dimension B

10.220 in | 259.6 mm

Specifications Length Dimension E

0.970 in | 24.6 mm

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

Specifications Small End Inside Diameter Dimension C

9.820 in | 249.4 mm

Specifications Small End Outer Diameter Dimension A

9.970 in | 253.2 mm
