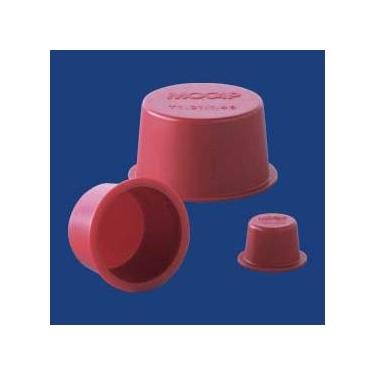

The Tapered Plastic Plug Cap is a versatile dual-function closure made from tough polyethylene, offering reliable protection as both a cap and a plug for various threaded and non-threaded applications. Designed for tube and hydraulic fittings, this cap safeguards against debris, damage, moisture, and corrosion. With precise dimensions and a secure fit, it is ideal for use in product protection and masking applications, providing a cost-effective solution for painting and coating processes. MOCAP's high-quality plug caps are conveniently available in different sizes for immediate shipment.
Product Specifications
Applications 0

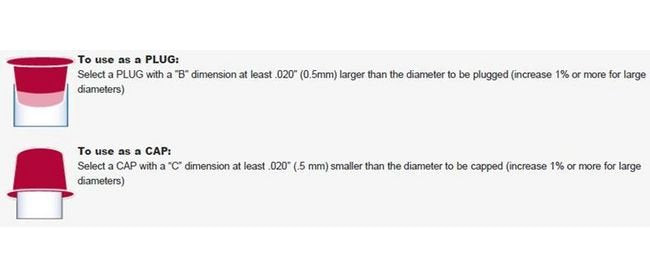

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 inTubesHydraulic FittingsTube End CapsPipe CapsProduct Protection
Features 0
Durable and flexible - Use as a cap or plugProtects against debris, damage, moisture and corrosionMOCAP stocks tapered plastic plug caps in many sizes for immediate shipment
Functions 0

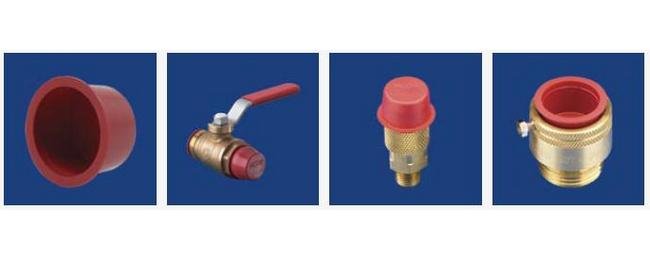

Functions as a Cap : MOCAP T-Series Plastic Plug Cap has a tapered design which allows it to be used as a cap for multiple threaded and non-threaded applications. Review MOCAP's selection of caps.Functions as a Plug : Use MOCAP's Tapered Plug Cap to plug a wide range of openings, including threaded and non threaded holes, pipe and tube end plug, connector ports and fittings. Review MOCAP's selection of plugs.
Manufacturing Notes 0
MOCAP stocks Tapered Plastic Plug Caps in many sizes for immediate shipment.Micro-Packs are only available online.
Masking Applications 0
MOCAP Plug Caps can also be used as inexpensive, single use disposable masking caps or masking plugs for painting, coating and spraying processes up to 175 °F (80 °C). Review MOCAP's complete Line of Masking Products .
Specifications Box Quantity
1000

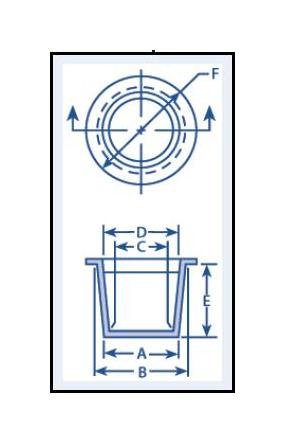

Specifications Flange Outer Diameter Dimension F
2.882 in | 73.2 mm
Specifications Large End Inside Diameter Dimension D
2.630 in | 66.8 mm
Specifications Large End Outer Diameter Dimension B
2.689 in | 68.3 mm
Specifications Length Dimension E
0.63 in | 16.0 mm
Specifications Micro Pack Quantity
20
Specifications Mini Pack Quantity
200
Specifications Small End Inside Diameter Dimension C
2.492 in | 63.3 mm
Specifications Small End Outer Diameter Dimension A
2.555 in | 64.9 mm
