Durable Tapered Plastic Plug Cap - MOCAP T-Series

Name: Durable Tapered Plastic Plug Cap - MOCAP T-Series
Brand: MOCAP LLC
SKU: TAP-a51b0d
Price: 29.99 USD
Availability: OutOfStock

SKU:TAP-a51b0d

Versatile MOCAP T-Series Tapered Plastic Plug Caps - Seal, protect, and mask effectively!

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

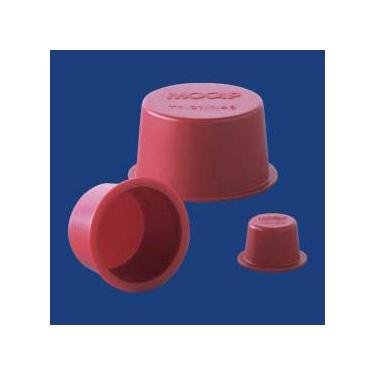

The MOCAP T-Series Tapered Plastic Plug Cap offers versatile dual function closures, serving as both a plug and cap. Crafted from durable and flexible polyethylene, these plug caps provide a secure fit while safeguarding against debris, damage, moisture, and corrosion. Ideal for tube fittings, hydraulic applications, and as protective end caps. Additionally, these plug caps can be used in painting processes as disposable masking caps. Available in various sizes for immediate shipment, providing a cost-effective solution for protection and sealing needs.

Product Specifications

Applications 0

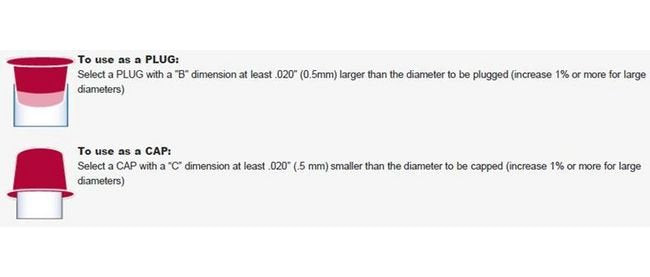

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 inTubesHydraulic FittingsTube End CapsPipe CapsProduct Protection

Features 0

Durable and flexible - Use as a cap or plugProtects against debris, damage, moisture and corrosionMOCAP stocks tapered plastic plug caps in many sizes for immediate shipment

Functions 0

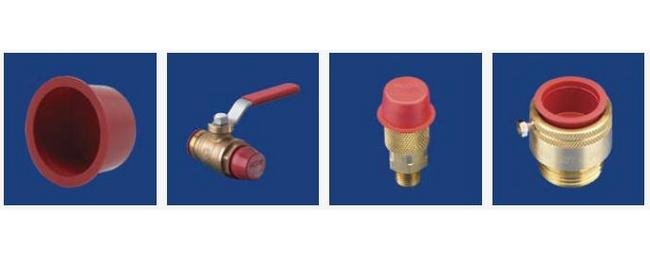

Functions as a Cap : MOCAP T-Series Plastic Plug Cap has a tapered design which allows it to be used as a cap for multiple threaded and non-threaded applications. Review MOCAP's selection of caps.Functions as a Plug : Use MOCAP's Tapered Plug Cap to plug a wide range of openings, including threaded and non threaded holes, pipe and tube end plug, connector ports and fittings. Review MOCAP's selection of plugs.

Manufacturing Notes 0

MOCAP stocks Tapered Plastic Plug Caps in many sizes for immediate shipment.Micro-Packs are only available online.

Masking Applications 0

MOCAP Plug Caps can also be used as inexpensive, single use disposable masking caps or masking plugs for painting, coating and spraying processes up to 175 °F (80 °C). Review MOCAP's complete Line of Masking Products .

Specifications Box Quantity

250

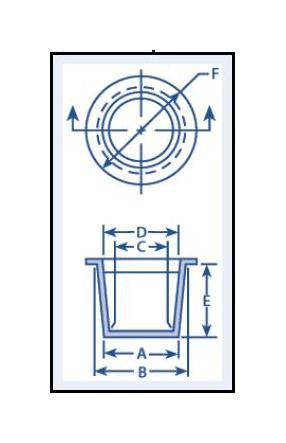

Specifications Flange Outer Diameter Dimension F

4.622 in | 117.4 mm

Specifications Large End Inside Diameter Dimension D

4.240 in | 107.7 mm

Specifications Large End Outer Diameter Dimension B

4.319 in | 109.7 mm

Specifications Length Dimension E

1.252 in | 31.8 mm

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

Specifications Small End Inside Diameter Dimension C

4.012 in | 101.9 mm

Specifications Small End Outer Diameter Dimension A

4.091 in | 103.9 mm
