Durable Vehicular Slide Gate Operator
Durable Vehicular Slide Gate Operator
SKU:SLI-8d0ead
Enhance residential gate security with the DoorKing® Slide Gate Operator 9050. Durable, safe, compliant with UL standards.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Durable Vehicular Slide Gate Operator
$1,399.99
Quantity: 1
Claim Your Seller Account
Durable Vehicular Slide Gate Operator
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

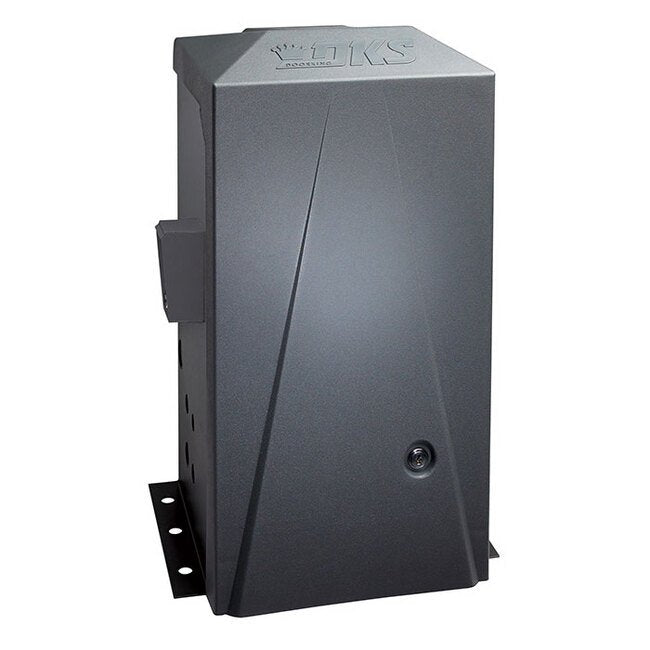

The DoorKing® Slide Gate Operator 9050 ensures high-cycle durability with fail-safe design for enhanced safety. Ideal for residential applications, this operator can be configured for various drive setups, featuring a 1/2 hp motor, maximum gate length of 16 ft, and self-adjusting magnetic limits. Compliant with UL 325 and 991, ETL Listed, it includes fail-safe release, convenience outlets, and plug-in loop detector ports. With clean aesthetics and reliable access control, this operator exceeds industry safety standards.
Product Specifications
Additional Information Additional Information
The solar power version is ideal in applications where AC power is unavailable, with the option to add your own solar system for power, or you can use the DKS solar kit.Reliable access control should never come with risk - DKS Slide Gate Operators are designed to maintain the security of your vehicle entry points without posing a threat to pedestrians. Long considered to be the leading protective Vehicular Gate Operators on the market, DKS products exceed the UL 325 Safety Standard and offer both electronic and mechanical systems to detect people or objects in the opening or closing path of the gate. In addition, our patented "Fail-Safe" release design is preferred by fire authorities throughout the country. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Advantages Advantages
Residential built in safety features.1/2 horsepower for up to 16 ft gates weighing up to 500 lb for residential applications
Applications Applications
Commercial / IndustrialResidential
Duty Cycle Type Duty Cycle Type
Limited
Key Features Key Features

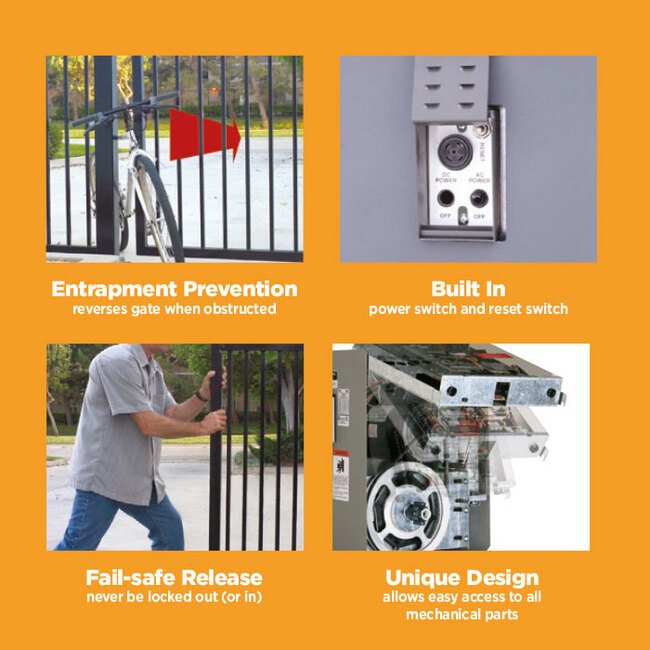

Self-adjusting, no maintenance magnetic limits.Ports for plug-in loop detectors.Two convenience outlets.Fail-safe release (fail-secure optional).Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Fail-secure release kit.Nickel plated chain.Plug-in loop detectors.Heater kit for cold environments.Base plate to post mount this operator (does not include posts).Surge suppressors.
Specifications Alternating Current Ac Voltage
115 V
Specifications Anti Tailgate Feature
No
Specifications Breakaway Hub
Yes
Specifications Class Of Operation
Class I
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
No
Specifications Gate Tracker Data Output
No
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Self-adjusting, No Maintenance Magnetic Limits
Specifications Manual Release
Fail Safe Release (Fail-Secure optional)
Specifications Maximum Gate Length
16 ft
Specifications Maximum Gate Weight
500 lb
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Pad/Post
Specifications Number Of Convenience Outlets
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Partial Open Limit
No
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
No
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Type
Slide
Technical Specifications Technical Specifications

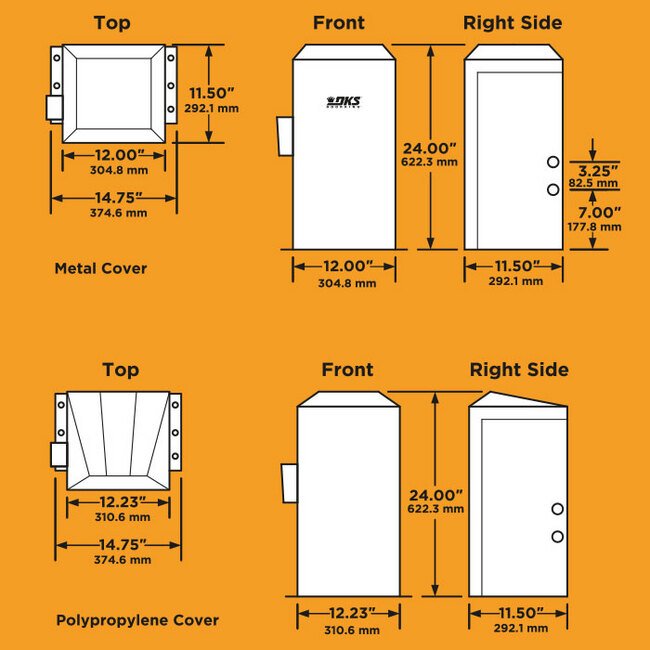

Frame: G90 galvanized steel to prevent rustingCover: Steel or polypropylene coverPrimary Reduction: Single cog beltSpeed: Approximately 10 in/sec (254 mm/sec)Chain: Unit is shipped with 20 ft (6m) of #40; roller chain, chain brackets, hardwareFail-safe release standardMaximum gate length 16-feet.Maximum gate weight 500 pounds. (Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)1/2 HP limited-duty motor.115 VAC, 60 Hz, 5.4A.Class I applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)12 "W x 24 "H x 11.5 "D
