Durable Vinyl End Caps
Durable Vinyl End Caps
SKU:ROU-21b5cf
Protect and beautify products with our Durable Vinyl End Caps! Affordable, versatile, and compliant with procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Durable Vinyl End Caps
$29.99
Quantity: 1
Claim Your Seller Account
Durable Vinyl End Caps
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

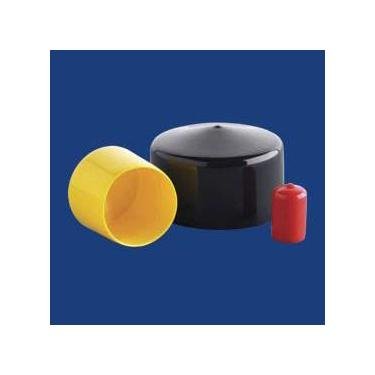

Enhance the protection and aesthetics of your products with our Durable Vinyl End Caps. These caps offer a quality finished appearance and tough protection at an affordable price. Perfect for masking applications during painting and coating processes below 300 °F. Available in various sizes, colors, and lengths with no additional tooling charge. Ideal for industrial applications and complying with relevant procurement standards.
Product Specifications
Features 0
MOCAP round vinyl plastic caps are available in sizes from 0.062 in to 6.00 in diameter.
Finishing And Appearance 0
MOCAP can dip mold round vinyl plastic caps in virtually any color to compliment your product as a finishing cap visible to end users. Consider MOCAP's other finishing and appearance Products.
Manufacturing Notes 0

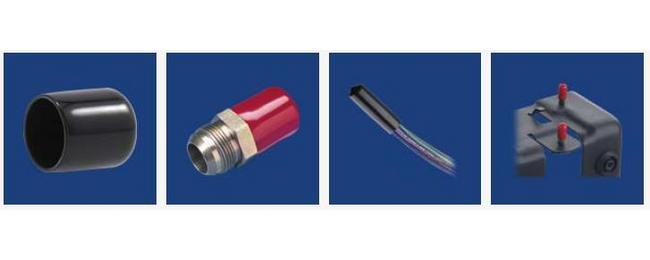

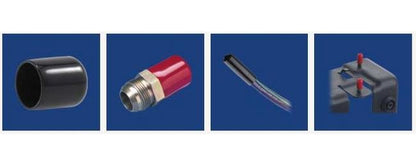

Round Plastic Caps are stocked in many sizes, ready for immediate shipment or MOCAP can manufacture vinyl plastic caps to-order with the fastest lead-times in the industry.PMS or special color matching available if our standard color options do not meet your needs.Stocked Parts are in General Purpose 9500-002 Black Material, with some available in our General Purpose 9500-011 Red Material. See the size chart above for stock offerings.Box Quantities may vary on items which are available in multiple lengths. Use MOCAP vinyl plastic caps as durable and inexpensive caps to protect your product threads or surfaces during assembly or shipping. Review all of MOCAP's products.Micro-Packs are only available online.
Masking Applications 0
MOCAP vinyl plastic caps are often used as inexpensive and disposable single-use masking caps for painting and coating processes under 300 °F. For high temperature masking greater than 300 °F, consider MOCAP's High Temperature Vinyl or EPDM Masking Products good to 475 °F, or MOCAP Silicone Masking Products good to over 600 °F.
Specifications Box Quantity
5100

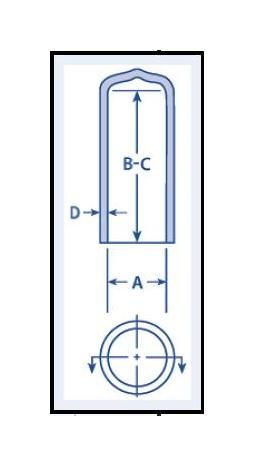

Specifications Inside Diameter Dimension A
0.172 in | 4.4 mm
Specifications Manufacturing Process
Dip Molded
Specifications Maximum Inside Length Dimension C
1.500 in | 38.1 mm
Specifications Micro Pack Quantity
102
Specifications Minimum Inside Length Dimension B
0.188 in | 4.8 mm
Specifications Mini Pack Quantity
1020
Specifications Stocked Length
0.5 in | 1 in | 1.5 in
Specifications To Fit Metric Thread Size
M5
Specifications To Fit Standard Thread Size
10 in
Specifications Wall Thickness Dimension D
0.038 in | 1.0 mm
