Durair II Pneumatic Actuator
Durair II Pneumatic Actuator
SKU:ACT-6008ed
High-performance Durair II Pneumatic Actuator with extended cycle life, low friction bearings, and precision machined gears for reliable and smooth operation.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Durair II Pneumatic Actuator
$849.99
Quantity: 1
Claim Your Seller Account
Durair II Pneumatic Actuator
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

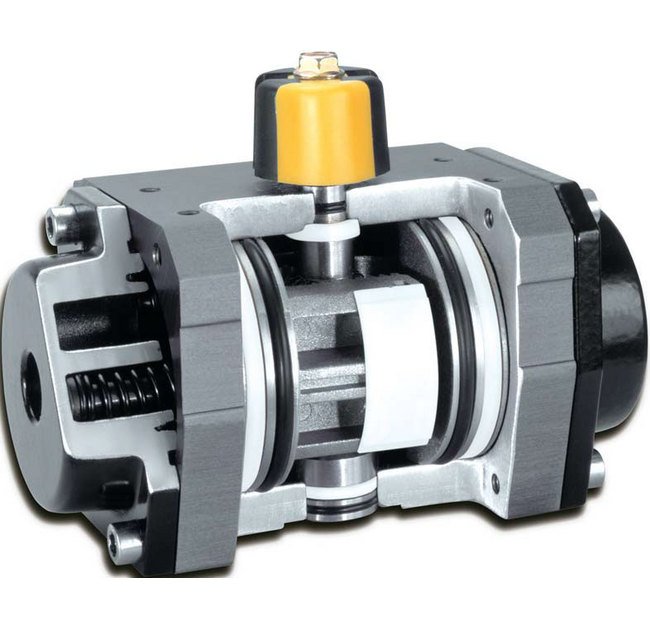

The Durair II Pneumatic Actuator is designed for high-performance industrial applications, boasting an extended cycle life of 1 million cycles. Featuring low friction bearings, precision machined gears, and epoxy coated springs, this actuator ensures smooth and reliable operation. Tested to ASTM B117-73 for 500 hours salt spray resistance, it offers versatility with multiple mounting styles and NAMUR/ISO dimensions compatibility. Operating at pressures of 40 to 120 psig and temperatures from -4°F to 180°F, this actuator is suitable for various media including dry or lubricated air, non-corrosive gases, inert gases, and light hydraulic oils. With safety features like independent travel stops and precompressed spring cartridge, the Durair II provides precise control and durability.
Product Specifications
Specifications Accessories

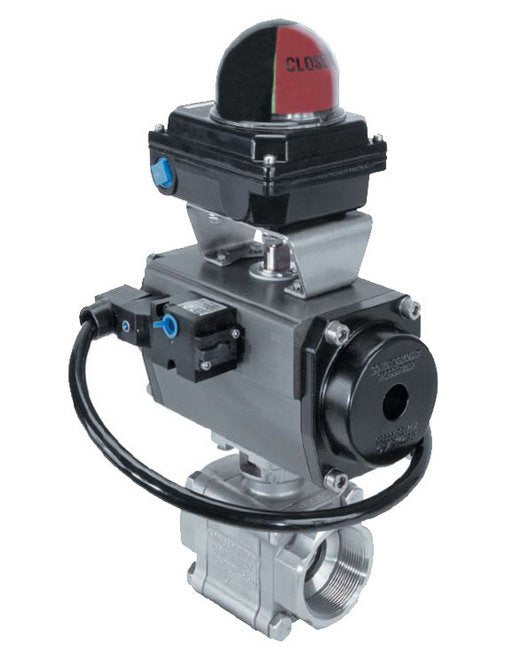

Limit Switch | Positioner | Solenoid Valve
Specifications Bearing Pinion Bottom No 25
Nylon Qty. 1
Specifications Bearing Pinion Top No 26
Nylon Qty. 1
Specifications Bearing Piston No 27
Nylon Qty. 2
Specifications Body No 1
Extruded Aluminum Alloy (ASTM 6063T6)Qty. 1
Specifications Cap Screw No 16
Stainless Steel (18-8)Qty. 8
Specifications Close Speed
6.0 sec
Specifications Cover Gasket No 14
Nitrile (NBR)Qty. 2
Specifications End Cover No 3
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Key Pinion Anti Ejection No 5
NylonQty. 2
Specifications Nameplate No 15
Aluminum Qty. 1
Specifications Note
All are factory installed and tested to manufacturer's specification.
Specifications Nut End Stop No 17
Stainless Steel (18-8)Qty. 4
Specifications Open Speed
6.0 sec
Specifications O Ring End Stop No 19
Nitrile (NBR)Qty. 4
Specifications O Ring Pinion Bottom No 6
Nitril (NBR)Qty. 1
Specifications O Ring Pinion Top No 7
Nitril (NBR)Qty. 1
Specifications O Ring Piston No 12
Nitrile (NBR)Qty. 2
Specifications Pinion No 4
Steel (Nickel Plated) (ASTM A105)Qty. 1
Specifications Piston Bearing No 13
Acetal Resin (LAT LUB 731 320AT +20% PTFE)Qty. 2
Specifications Piston No 2
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Retaining Ring No 10
Spring SteelQty. 1
Specifications Screw End Stop No 21
Stainless Steel (18-18)Qty. 2
Specifications Screw Piston Stop No 28
Stainless Steel (18-8)Qty. 2

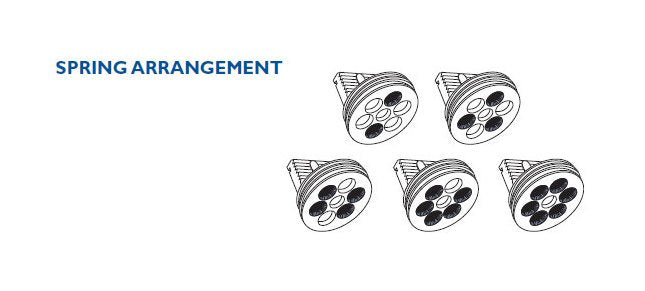

Specifications Spring Cartridge No 11
High Alloy Spring Steel Qty. 12 max.
Specifications Thrust Bearing No 24
Nylon Qty. 1
Specifications Thrust Washer Pinion No 23
Stainless Steel (18-8)Qty. 1
Specifications Washer No 18
Stainless Steel (18-8)Qty. 4
Specifications Weight
249 lbs
