Durair II Pneumatic Actuator - High-Performance Air-Driven Motion Control
Durair II Pneumatic Actuator - High-Performance Air-Driven Motion Control
SKU:ACT-9db866
Durable Durair II Pneumatic Actuator for precise and reliable motion control in industrial settings. Tested to ASTM standards. NAMUR and ISO compatible.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Durair II Pneumatic Actuator - High-Performance Air-Driven Motion Control
$239.99
Quantity: 1
Claim Your Seller Account
Durair II Pneumatic Actuator - High-Performance Air-Driven Motion Control
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

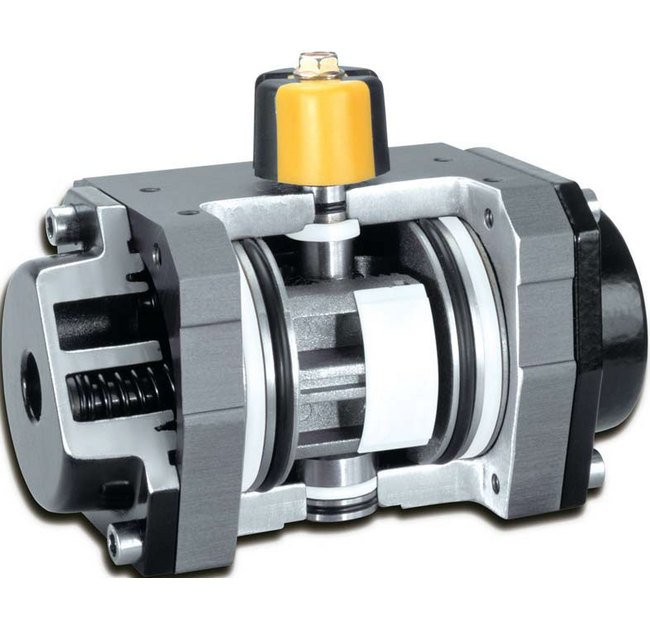

The Durair II Pneumatic Actuator is engineered for exceptional longevity with a cycle life of 1 million cycles, offering reliable performance in demanding industrial environments. Constructed with precision-machined gears, low friction bearings, and an epoxy-coated spring, this actuator ensures smooth and precise operation. Tested to ASTM B117-73 for 500 hours of salt spray resistance, it features an anodized body or nickel-plated finish for enhanced durability. With NAMUR and ISO dimensions for easy accessory and valve mounting, this actuator provides versatile functionality. Operating at 40 to 120 psig and -4°F to 180°F, it accommodates dry or lubricated air, various gases, and light hydraulic oil, making it suitable for a wide range of applications.
Product Specifications
Specifications Accessories

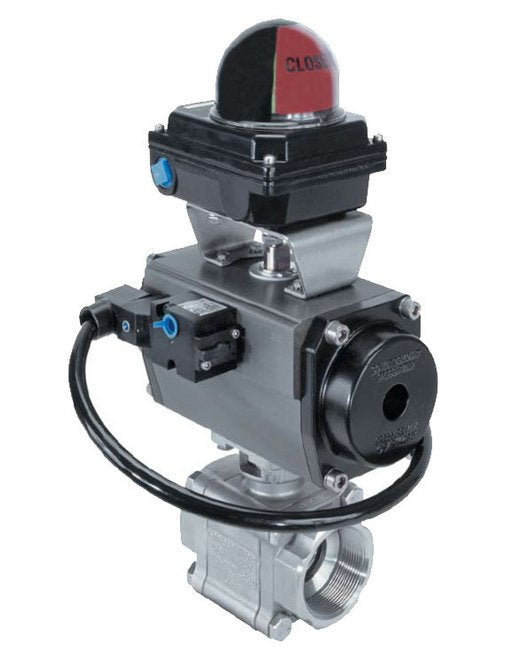

Limit Switch | Positioner | Solenoid Valve
Specifications Bearing Pinion Bottom No 25
Nylon Qty. 1
Specifications Bearing Pinion Top No 26
Nylon Qty. 1
Specifications Bearing Piston No 27
Nylon Qty. 2
Specifications Body No 1
Extruded Aluminum Alloy (ASTM 6063T6)Qty. 1
Specifications Cap Screw No 16
Stainless Steel (18-8)Qty. 8
Specifications Close Speed
0.6 sec
Specifications Cover Gasket No 14
Nitrile (NBR)Qty. 2
Specifications End Cover No 3
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Key Pinion Anti Ejection No 5
NylonQty. 2
Specifications Nameplate No 15
Aluminum Qty. 1
Specifications Note
All are factory installed and tested to manufacturer's specification.
Specifications Nut End Stop No 17
Stainless Steel (18-8)Qty. 4
Specifications Open Speed
0.6 sec
Specifications O Ring End Stop No 19
Nitrile (NBR)Qty. 4
Specifications O Ring Pinion Bottom No 6
Nitril (NBR)Qty. 1
Specifications O Ring Pinion Top No 7
Nitril (NBR)Qty. 1
Specifications O Ring Piston No 12
Nitrile (NBR)Qty. 2
Specifications Pinion No 4
Steel (Nickel Plated) (ASTM A105)Qty. 1
Specifications Piston Bearing No 13
Acetal Resin (LAT LUB 731 320AT +20% PTFE)Qty. 2
Specifications Piston No 2
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Retaining Ring No 10
Spring SteelQty. 1
Specifications Screw End Stop No 21
Stainless Steel (18-18)Qty. 2
Specifications Screw Piston Stop No 28
Stainless Steel (18-8)Qty. 2

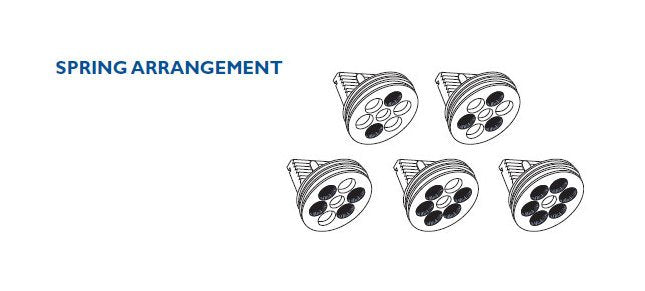

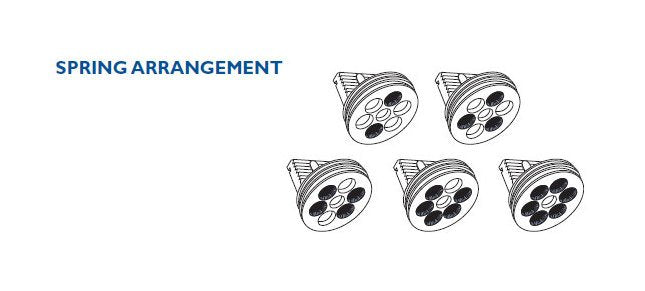

Specifications Spring Cartridge No 11
High Alloy Spring Steel Qty. 12 max.
Specifications Thrust Bearing No 24
Nylon Qty. 1
Specifications Thrust Washer Pinion No 23
Stainless Steel (18-8)Qty. 1
Specifications Volume
7.0 in³
Specifications Washer No 18
Stainless Steel (18-8)Qty. 4
Specifications Weight
2.35 lbs
