Durair II Pneumatic Actuator - High Performance Industrial Grade
Durair II Pneumatic Actuator - High Performance Industrial Grade
SKU:ACT-a083e8
Durable Durair II Pneumatic Actuator for industrial applications, offering extended cycle life, precision engineering, and reliable performance in harsh environments.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Durair II Pneumatic Actuator - High Performance Industrial Grade
$359.99
Quantity: 1
Claim Your Seller Account
Durair II Pneumatic Actuator - High Performance Industrial Grade
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

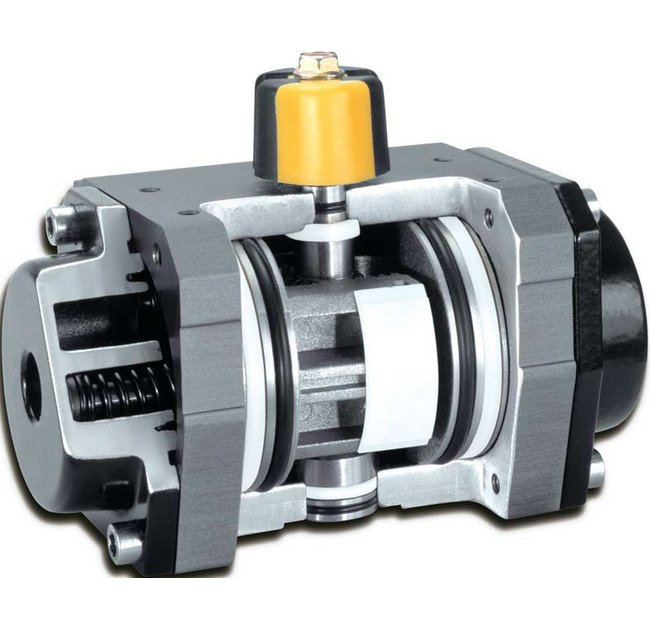

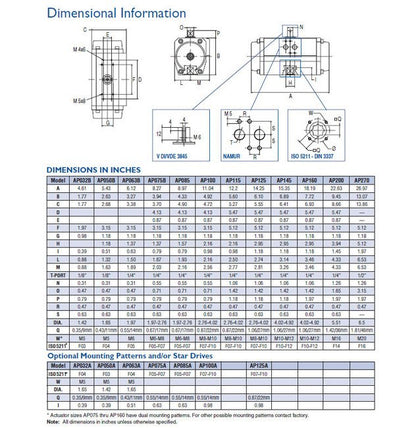

The Durair II Pneumatic Actuator is engineered for excellence, offering exceptional durability with an extended cycle life of 1 million cycles. Featuring low friction bearings, polished bore, and precision machined gears, this actuator ensures smooth and reliable operation in diverse industrial settings. With an anodized body (ASTM 6063) or nickel plated options, and tested to ASTM B117-73 for 500 hours salt spray resistance, this actuator guarantees long-term performance in even the harshest environments. Designed with NAMUR and ISO dimensions for easy accessory and valve mounting, this actuator provides unparalleled flexibility and precision. Operating at pressures from 40 to 120 psig and temperatures from -4°F to 180°F, it is compatible with dry or lubricated air, non-corrosive gases, and light hydraulic oil. The Durair II Pneumatic Actuator is the ideal choice for industrial applications requiring superior performance and reliability.
Product Specifications
Specifications Accessories

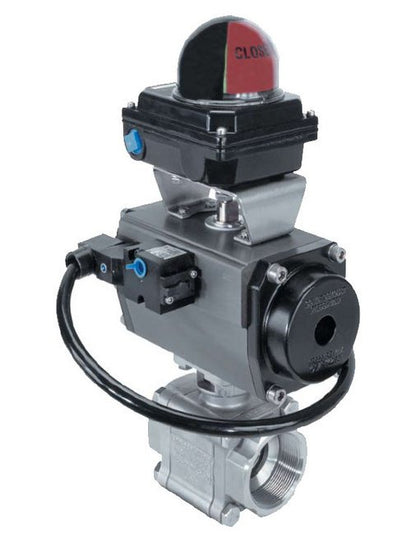

Limit Switch | Positioner | Solenoid Valve
Specifications Bearing Pinion Bottom No 25
Nylon Qty. 1
Specifications Bearing Pinion Top No 26
Nylon Qty. 1
Specifications Bearing Piston No 27
Nylon Qty. 2
Specifications Body No 1
Extruded Aluminum Alloy (ASTM 6063T6)Qty. 1
Specifications Cap Screw No 16
Stainless Steel (18-8)Qty. 8
Specifications Close Speed
2.1 sec
Specifications Cover Gasket No 14
Nitrile (NBR)Qty. 2
Specifications End Cover No 3
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Key Pinion Anti Ejection No 5
NylonQty. 2
Specifications Nameplate No 15
Aluminum Qty. 1
Specifications Note
All are factory installed and tested to manufacturer's specification.
Specifications Nut End Stop No 17
Stainless Steel (18-8)Qty. 4
Specifications Open Speed
1.3 sec
Specifications O Ring End Stop No 19
Nitrile (NBR)Qty. 4
Specifications O Ring Pinion Bottom No 6
Nitril (NBR)Qty. 1
Specifications O Ring Pinion Top No 7
Nitril (NBR)Qty. 1
Specifications O Ring Piston No 12
Nitrile (NBR)Qty. 2
Specifications Pinion No 4
Steel (Nickel Plated) (ASTM A105)Qty. 1
Specifications Piston Bearing No 13
Acetal Resin (LAT LUB 731 320AT +20% PTFE)Qty. 2
Specifications Piston No 2
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Retaining Ring No 10
Spring SteelQty. 1
Specifications Screw End Stop No 21
Stainless Steel (18-18)Qty. 2
Specifications Screw Piston Stop No 28
Stainless Steel (18-8)Qty. 2

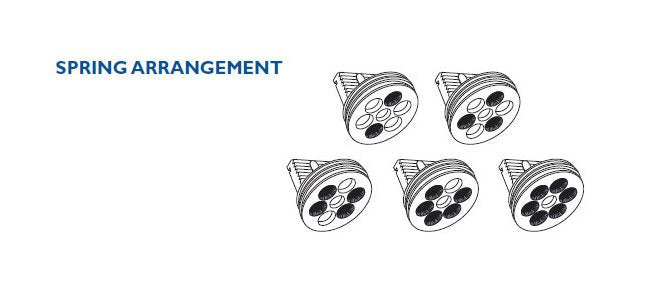

Specifications Spring Cartridge No 11
High Alloy Spring Steel Qty. 12 max.
Specifications Thrust Bearing No 24
Nylon Qty. 1
Specifications Thrust Washer Pinion No 23
Stainless Steel (18-8)Qty. 1
Specifications Washer No 18
Stainless Steel (18-8)Qty. 4
Specifications Weight
31.5 lbs
