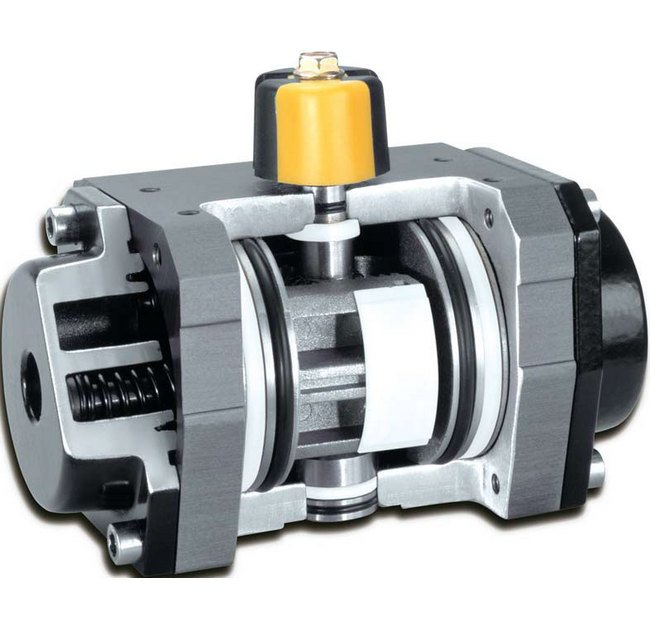

Enhance your industrial operations with the Durair II Pneumatic Actuator, designed for extended cycle life of 1 million cycles. This actuator features low friction bearings, polished bore, precision machined gears, and epoxy-coated springs. With exterior coatings and tested to ASTM B117-73 for 500 hrs salt spray, it ensures durability. Operating at 40 to 120 psig with a temperature range of -4º F to 180º F, it supports various media types including dry or lubricated air, non-corrosive gas, and light hydraulic oil. Compliant with NAMUR and ISO dimensions, multiple mounting styles, and safety features make it a reliable choice for institutional and industrial settings.
Product Specifications
Specifications Accessories

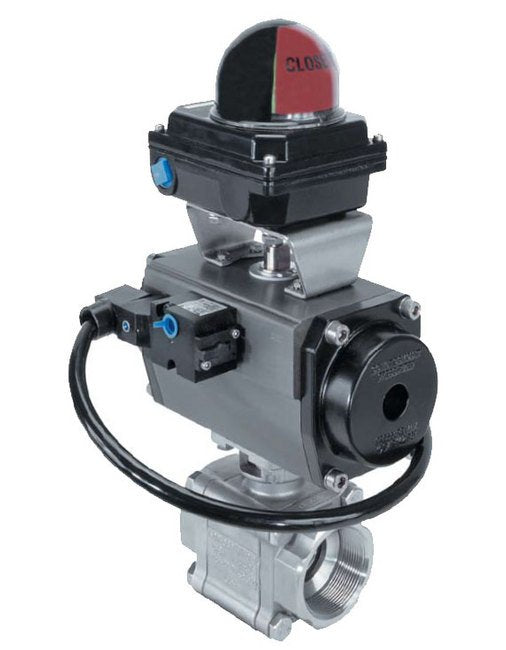

Limit Switch | Positioner | Solenoid Valve
Specifications Bearing Pinion Bottom No 25
Nylon Qty. 1
Specifications Bearing Pinion Top No 26
Nylon Qty. 1
Specifications Bearing Piston No 27
Nylon Qty. 2
Specifications Body No 1
Extruded Aluminum Alloy (ASTM 6063T6)Qty. 1
Specifications Cap Screw No 16
Stainless Steel (18-8)Qty. 8
Specifications Close Speed
1.3 sec
Specifications Cover Gasket No 14
Nitrile (NBR)Qty. 2
Specifications End Cover No 3
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Key Pinion Anti Ejection No 5
NylonQty. 2
Specifications Nameplate No 15
Aluminum Qty. 1
Specifications Note
All are factory installed and tested to manufacturer's specification.
Specifications Nut End Stop No 17
Stainless Steel (18-8)Qty. 4
Specifications Open Speed
0.7 sec
Specifications O Ring End Stop No 19
Nitrile (NBR)Qty. 4
Specifications O Ring Pinion Bottom No 6
Nitril (NBR)Qty. 1
Specifications O Ring Pinion Top No 7
Nitril (NBR)Qty. 1
Specifications O Ring Piston No 12
Nitrile (NBR)Qty. 2
Specifications Pinion No 4
Steel (Nickel Plated) (ASTM A105)Qty. 1
Specifications Piston Bearing No 13
Acetal Resin (LAT LUB 731 320AT +20% PTFE)Qty. 2
Specifications Piston No 2
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Retaining Ring No 10
Spring SteelQty. 1
Specifications Screw End Stop No 21
Stainless Steel (18-18)Qty. 2
Specifications Screw Piston Stop No 28
Stainless Steel (18-8)Qty. 2

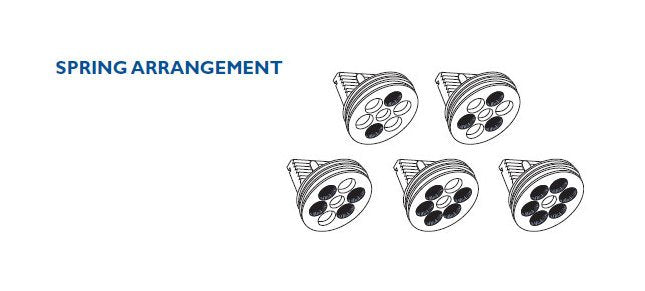

Specifications Spring Cartridge No 11
High Alloy Spring Steel Qty. 12 max.
Specifications Thrust Bearing No 24
Nylon Qty. 1
Specifications Thrust Washer Pinion No 23
Stainless Steel (18-8)Qty. 1
Specifications Washer No 18
Stainless Steel (18-8)Qty. 4
Specifications Weight
10.7 lbs
