Durair II Pneumatic Actuator - Precision engineered for durability and reliability in industrial settings.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

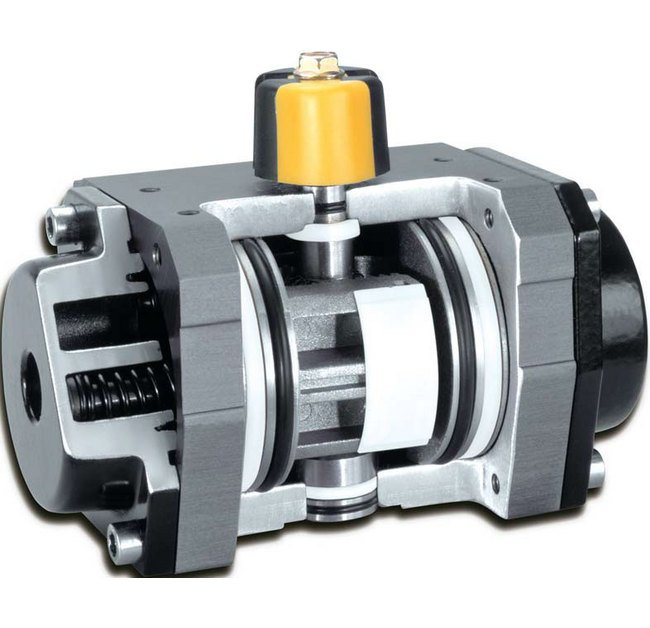

The Durair II Pneumatic Actuator offers unparalleled durability and precision engineered performance for industrial applications. With features like low friction bearings, polished bore, precision machined gears, and epoxy coated springs, this actuator ensures a prolonged cycle life of up to 1 million cycles. Tested to ASTM B117-73 for 500 hours of salt spray, it guarantees reliability under harsh conditions. From its anodized body to nickel plated end covers and diverse mounting options, the Durair II meets the stringent requirements of government and institutional procurement standards. Operating at 40 to 120 psig and a temperature range of -4°F to 180°F, this actuator is suitable for various media types including dry or lubricated air, non-corrosive and inert gas, and light hydraulic oil.

Product Specifications

Specifications Accessories

Limit Switch | Positioner | Solenoid Valve

Specifications Bearing Pinion Bottom No 25

Nylon Qty. 1

Specifications Bearing Pinion Top No 26

Nylon Qty. 1

Specifications Bearing Piston No 27

Nylon Qty. 2

Specifications Body No 1

Extruded Aluminum Alloy (ASTM 6063T6)Qty. 1

Specifications Cap Screw No 16

Stainless Steel (18-8)Qty. 8

Specifications Close Speed

6.1 sec

Specifications Cover Gasket No 14

Nitrile (NBR)Qty. 2

Specifications End Cover No 3

Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2

Specifications Key Pinion Anti Ejection No 5

NylonQty. 2

Specifications Nameplate No 15

Aluminum Qty. 1

Specifications Note

All are factory installed and tested to manufacturer's specification.

Specifications Nut End Stop No 17

Stainless Steel (18-8)Qty. 4

Specifications Open Speed

4.6 sec

Specifications O Ring End Stop No 19

Nitrile (NBR)Qty. 4

Specifications O Ring Pinion Bottom No 6

Nitril (NBR)Qty. 1

Specifications O Ring Pinion Top No 7

Nitril (NBR)Qty. 1

Specifications O Ring Piston No 12

Nitrile (NBR)Qty. 2

Specifications Pinion No 4

Steel (Nickel Plated) (ASTM A105)Qty. 1

Specifications Piston Bearing No 13

Acetal Resin (LAT LUB 731 320AT +20% PTFE)Qty. 2

Specifications Piston No 2

Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2

Specifications Retaining Ring No 10

Spring SteelQty. 1

Specifications Screw End Stop No 21

Stainless Steel (18-18)Qty. 2

Specifications Screw Piston Stop No 28

Stainless Steel (18-8)Qty. 2

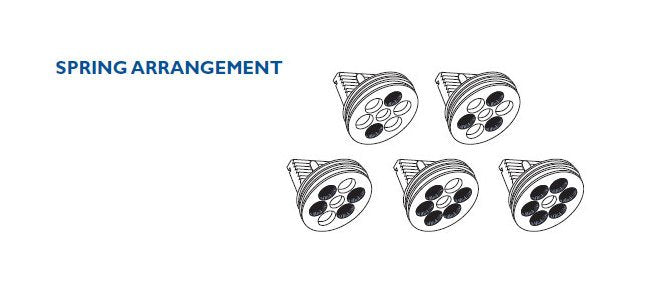

Specifications Spring Cartridge No 11

High Alloy Spring Steel Qty. 12 max.

Specifications Thrust Bearing No 24

Nylon Qty. 1

Specifications Thrust Washer Pinion No 23

Stainless Steel (18-8)Qty. 1

Specifications Washer No 18

Stainless Steel (18-8)Qty. 4

Specifications Weight

117 lbs
