Durair II Pneumatic Actuator with NAMUR & ISO Dimensions
Durair II Pneumatic Actuator with NAMUR & ISO Dimensions
SKU:ACT-6abdfc
Durable Durair II Pneumatic Actuator with extended cycle life, low friction bearings, and precision machined gears. Suitable for various media and operating conditions.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Durair II Pneumatic Actuator with NAMUR & ISO Dimensions
$549.99
Quantity: 1
Claim Your Seller Account
Durair II Pneumatic Actuator with NAMUR & ISO Dimensions
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

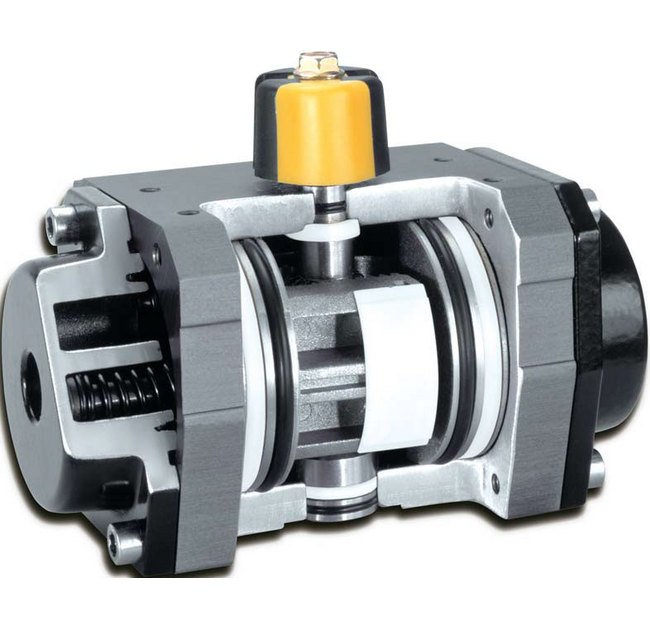

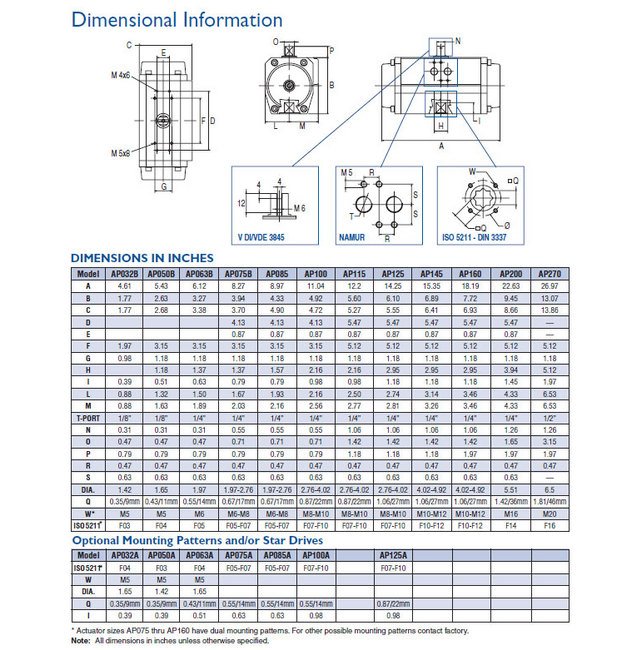

The Durair II Pneumatic Actuator is engineered for exceptional durability and optimum performance. With an extended cycle life of 1 million cycles, this actuator features low friction bearings, polished bore, and precision machined gears for smooth operation. Tested to ASTM B117-73 for 500 hours salt spray, and constructed with an anodized body or nickel-plated options, this actuator ensures reliability in diverse environments. Operating at 40 to 120 psig pressure range and -4°F to 180°F temperature, it is suitable for dry or lubricated air, non-corrosive gas, inert gas, and light hydraulic oil. The NAMUR and ISO dimensions allow seamless integration with accessories and valve mounting, making it an ideal choice for institutional and government procurement applications.
Product Specifications
Specifications Accessories

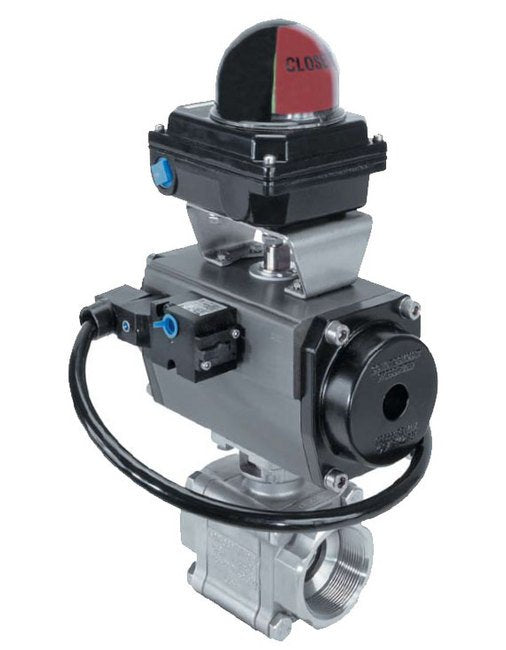

Limit Switch | Positioner | Solenoid Valve
Specifications Bearing Pinion Bottom No 25
Nylon Qty. 1
Specifications Bearing Pinion Top No 26
Nylon Qty. 1
Specifications Bearing Piston No 27
Nylon Qty. 2
Specifications Body No 1
Extruded Aluminum Alloy (ASTM 6063T6)Qty. 1
Specifications Cap Screw No 16
Stainless Steel (18-8)Qty. 8
Specifications Close Speed
4.6 sec
Specifications Cover Gasket No 14
Nitrile (NBR)Qty. 2
Specifications End Cover No 3
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Key Pinion Anti Ejection No 5
NylonQty. 2
Specifications Nameplate No 15
Aluminum Qty. 1
Specifications Note
All are factory installed and tested to manufacturer's specification.
Specifications Nut End Stop No 17
Stainless Steel (18-8)Qty. 4
Specifications Open Speed
3.6 sec
Specifications O Ring End Stop No 19
Nitrile (NBR)Qty. 4
Specifications O Ring Pinion Bottom No 6
Nitril (NBR)Qty. 1
Specifications O Ring Pinion Top No 7
Nitril (NBR)Qty. 1
Specifications O Ring Piston No 12
Nitrile (NBR)Qty. 2
Specifications Pinion No 4
Steel (Nickel Plated) (ASTM A105)Qty. 1
Specifications Piston Bearing No 13
Acetal Resin (LAT LUB 731 320AT +20% PTFE)Qty. 2
Specifications Piston No 2
Aluminum Alloy (Die Cast) (ASTM B179)Qty. 2
Specifications Retaining Ring No 10
Spring SteelQty. 1
Specifications Screw End Stop No 21
Stainless Steel (18-18)Qty. 2
Specifications Screw Piston Stop No 28
Stainless Steel (18-8)Qty. 2

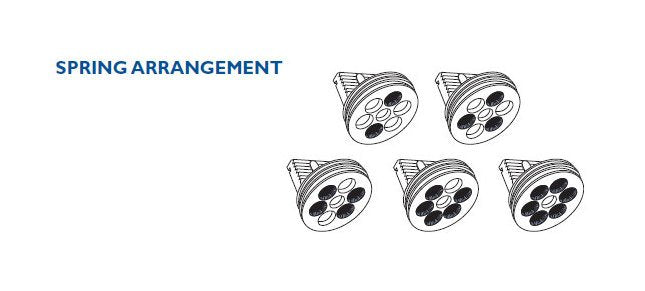

Specifications Spring Cartridge No 11
High Alloy Spring Steel Qty. 12 max.
Specifications Thrust Bearing No 24
Nylon Qty. 1
Specifications Thrust Washer Pinion No 23
Stainless Steel (18-8)Qty. 1
Specifications Volume
434 in³
Specifications Washer No 18
Stainless Steel (18-8)Qty. 4
Specifications Weight
95.0 lbs
