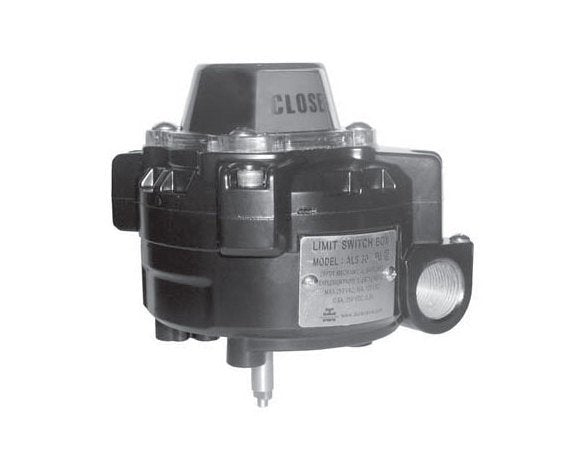

Duravalve ALS Series Explosion Proof Switch Box
Duravalve ALS Series Explosion Proof Switch Box
SKU:ACT-b65ab8
Duravalve ALS Series Explosion Proof Switch Box with polycarbonate position indicator, tool-free cam adjustment, and NAMUR compliance for reliable performance in hazardous environments.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Duravalve ALS Series Explosion Proof Switch Box
$199.99
Quantity: 1
Claim Your Seller Account
Duravalve ALS Series Explosion Proof Switch Box
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duravalve ALS Series Explosion Proof Switch Box is designed to provide a safe and reliable solution for electric actuators in hazardous environments. Featuring a durable die-cast aluminum housing and dual 3/4" conduit entries, this switch box is built to withstand extreme conditions. The clear polycarbonate valve position indicator allows for easy monitoring, while the quick-set cams enable tool-free adjustments. With micro switches rated for maximum 250V AC or DC, and compliant with NAMUR standards, this switch box offers precise control and peace of mind.
Product Specifications
Specifications Cam Openclose Material
Polycarbonate
Specifications Cover Screw Material
304 Stainless Steel
Specifications Dual Wire Potting
Dual 3/4" conduit entries
Specifications Housing Material
Die-Cast Aluminum
Specifications Inner Position Indicator Material
Polycarbonate
Specifications Insert Material
Bronze
Specifications Micro Switch Material
Polycarbonate
Specifications Mounting Bracket Material
Steel
Specifications Note
The right is reserved to change or modify product design or construction without prior notice and without incurring any obligation to make such changes or modifications on products previously or subsequently sold.All dimensions in inches unless otherwise specified.
Specifications Outer Position Indicator Material
Polycarbonate
Specifications O Ring Material
Nitrile (Rubber)
Specifications Quantity
Cam (open/close) - 2 | Cover Screw - 4 | Housing - 2 | Inner Position Indicator - 1 | Insert - 2 | Micro Switch - 2 | Mounting Bracket - 1 | O-Ring - 4 | Outer Position Indicator - 1 | Shaft (stem) - 1 | Spring - 1 | Terminal Block - 1
Specifications Shaft Stem Material
304 Stainless Steel
Specifications Spring Material
304 Stainless Steel
Specifications Terminal Block Material
Polyethylene
