Duravalve ALS Series Weatherproof Switch Box
Duravalve ALS Series Weatherproof Switch Box
SKU:ACT-623635
Durable weatherproof limit switch box for electric actuators with clear valve position indicator and easy installation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Duravalve ALS Series Weatherproof Switch Box
$99.99
Quantity: 1
Claim Your Seller Account
Duravalve ALS Series Weatherproof Switch Box
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

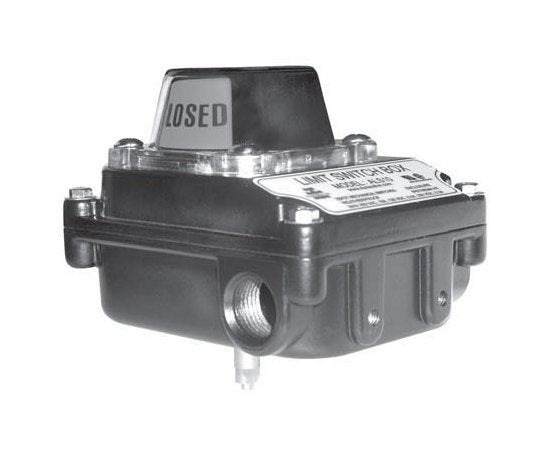

The Duravalve ALS Series Limit Switch Box is a robust solution for electric actuators, featuring a durable design with a weatherproof polycarbonate dome for clear valve position indication. It comes equipped with quick-set cams for easy adjustment, a multipoint terminal block for hassle-free installation, and dual wire potting for secure conduit entries. The switch box meets stringent industry standards, including die-cast aluminum housing, stainless steel components, and high-quality materials ensuring reliability and longevity.
Product Specifications
Specifications Cam Openclose Material
Polycarbonate
Specifications Cover Screw Material
304 Stainless Steel
Specifications Dual Wire Potting
Dual 1/2" conduit entries
Specifications Housing Material
Die-Cast Aluminum
Specifications Inner Position Indicator Material
Polycarbonate
Specifications Insert Material
Bronze
Specifications Micro Switch Material
Polycarbonate
Specifications Mounting Bracket Material
Steel
Specifications Note
The right is reserved to change or modify product design or construction without prior notice and without incurring any obligation to make such changes or modifications on products previously or subsequently sold.All dimensions in inches unless otherwise specified.
Specifications Outer Position Indicator Material
Polycarbonate
Specifications O Ring Material
Nitrile (Rubber)
Specifications Quantity
Cam (open/close) - 2 | Cover Screw - 4 | Housing - 2 | Inner Position Indicator - 1 | Insert - 2 | Micro Switch - 2 | Mounting Bracket - 1 | O-Ring - 4 | Outer Position Indicator - 1 | Shaft (stem) - 1 | Spring - 1 | Terminal Block - 1
Specifications Shaft Stem Material
304 Stainless Steel
Specifications Spring Material
304 Stainless Steel
Specifications Terminal Block Material
Polyethylene
