Duravalve Electric Actuator - 100-5000 In-Lbs Torque Range
Duravalve Electric Actuator - 100-5000 In-Lbs Torque Range
SKU:ACT-eddab5
The Duravalve Electric Actuator provides reliable control with a torque range of 100-5000 in-lbs. Ideal for a range of applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - 100-5000 In-Lbs Torque Range
$599.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - 100-5000 In-Lbs Torque Range
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

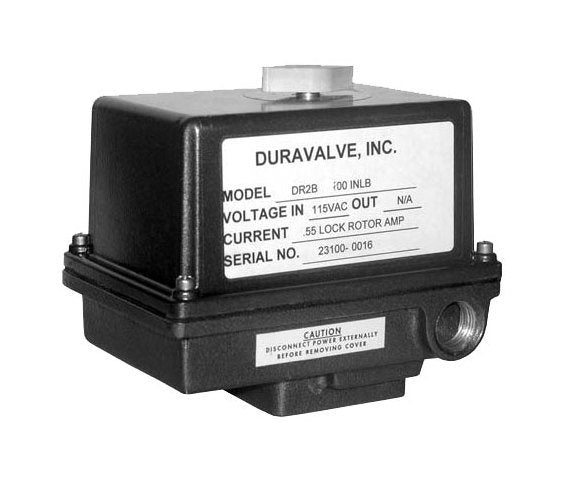

The Duravalve Electric Actuator offers precise control with a torque range of 100-5000 in-lbs. Constructed with durable materials including cast aluminum and stainless steel, this actuator is designed for reliability in various environments. Featuring thermal overload protection, limit switches, and universal installation compatibility, it ensures optimal performance with added safety measures. Optional features like different voltages, heater-thermostat, and motor brake expand its versatility for diverse applications.
Product Specifications
Specifications 90 Deg Time
2.5 sec
Specifications Approximate Weight
5 lbs
Specifications Duty Cycles
75 %

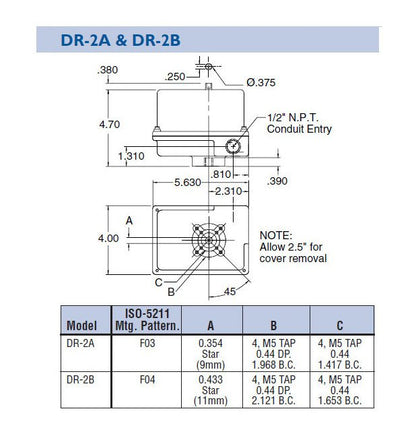

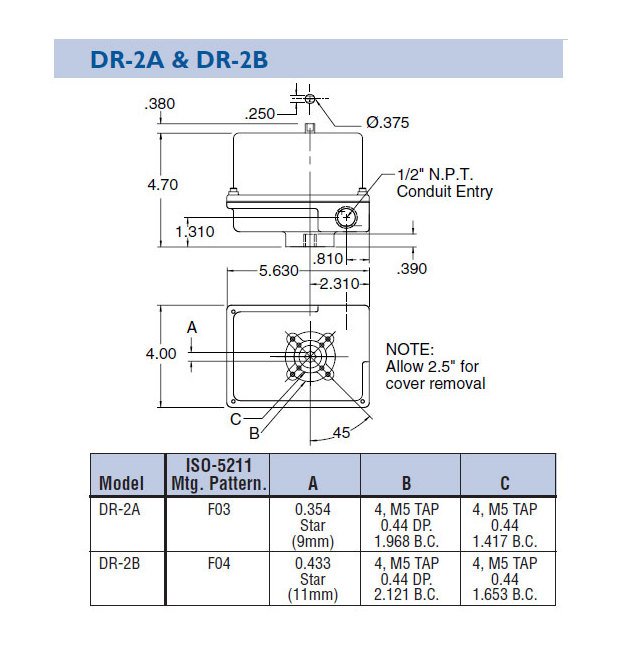

Specifications Iso 5211 Mtg Pattern
F04/11
Specifications Locked Rotor Current
0.55 A
Specifications Manual Override
STD. (Except NEMA 7 & DC Motors)
Specifications Output Torque
100 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
