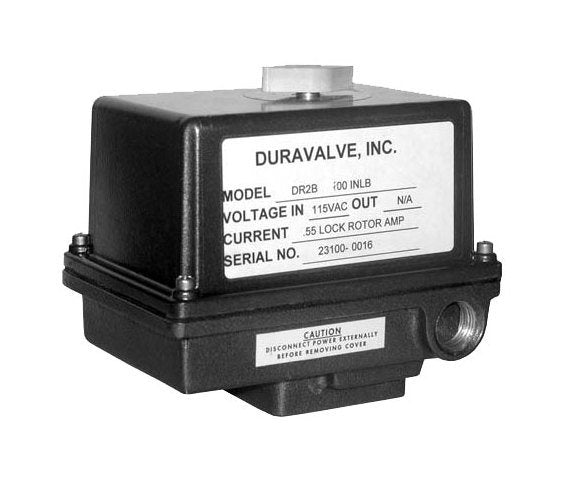

Duravalve Electric Actuator - Heavy-Duty Industrial Grade
Duravalve Electric Actuator - Heavy-Duty Industrial Grade
SKU:ACT-329861
Enhance operations with the Duravalve Electric Actuator - powerful, precise, and reliable.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - Heavy-Duty Industrial Grade
$399.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - Heavy-Duty Industrial Grade
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duravalve Electric Actuator is a versatile powerhouse offering durable performance across a range of applications. With output torque options from 100 to 5000 in-lbs and enclosures meeting NEMA 4 Watertight Standard, this actuator ensures reliability in harsh environments. Featuring stainless steel construction, thermal overload protection, and universal installation capabilities, it is a trusted choice for demanding industrial settings. Additional options like different voltages, heater-thermostat, and motor brake enhance its adaptability, making it a top-tier solution for industrial and institutional needs.
Product Specifications
Specifications 90 Deg Time
5 sec
Specifications Approximate Weight
6 lbs
Specifications Duty Cycles
25 %

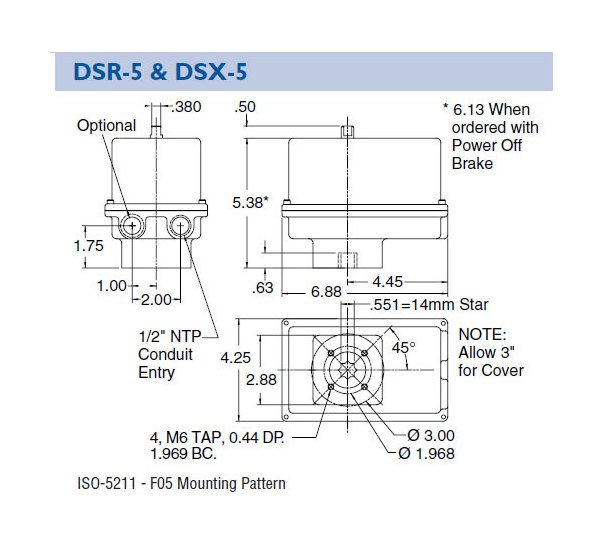

Specifications Iso 5211 Mtg Pattern
F05/14
Specifications Locked Rotor Current
0.75 A
Specifications Manual Override
STD. (Except DC Motors)
Specifications Output Torque
200 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
