Duravalve Electric Actuator - Heavy Duty Torque Solutions
Duravalve Electric Actuator - Heavy Duty Torque Solutions
SKU:ACT-622e73
Duravalve Electric Actuator - Precise control, durable construction, and safety features for versatile applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - Heavy Duty Torque Solutions
$599.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - Heavy Duty Torque Solutions
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

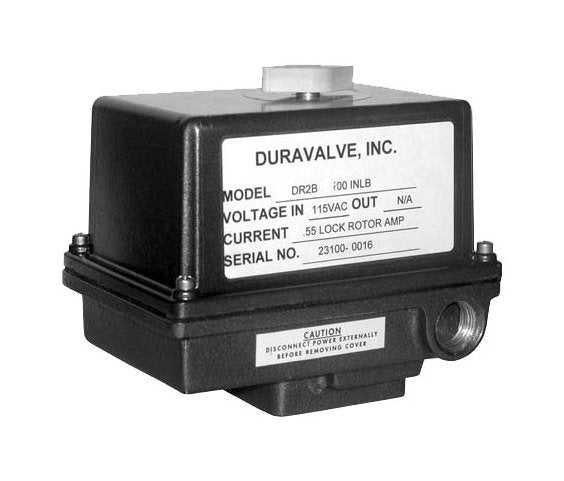

The Duravalve Electric Actuator offers precise control with torque ranging from 100 to 5000 In-Lbs, making it perfect for a wide range of applications. Featuring durable materials like cast aluminum and stainless steel, this actuator is built to withstand harsh environments. With standard thermal overload protection and limit switches independently adjustable up to 90 degrees, this actuator ensures safety and reliability. Optional features like different voltages, heater-thermostat, and motor brake cater to diverse operational needs. Trust the Duravalve Electric Actuator for efficient and long-lasting performance in demanding settings.
Product Specifications
Specifications 90 Deg Time
5 sec
Specifications Approximate Weight
6 lbs
Specifications Duty Cycles
25 %

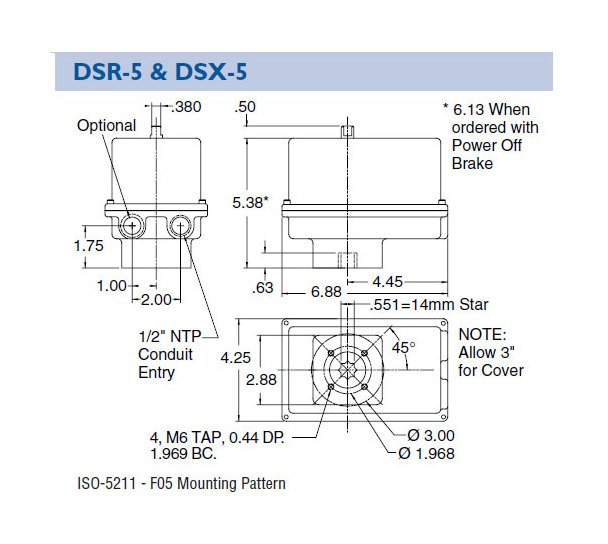

Specifications Iso 5211 Mtg Pattern
F05/14
Specifications Locked Rotor Current
0.99 A
Specifications Manual Override
STD. (Except DC Motors)
Specifications Output Torque
300 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
