Duravalve Electric Actuator - High Torque 675 in-lbs
Duravalve Electric Actuator - High Torque 675 in-lbs
SKU:ACT-ff940e
Reliable Duravalve Electric Actuator with 675 in-lbs torque, NEMA 4 enclosure, multiple voltage options & CSA certified.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - High Torque 675 in-lbs
$349.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - High Torque 675 in-lbs
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

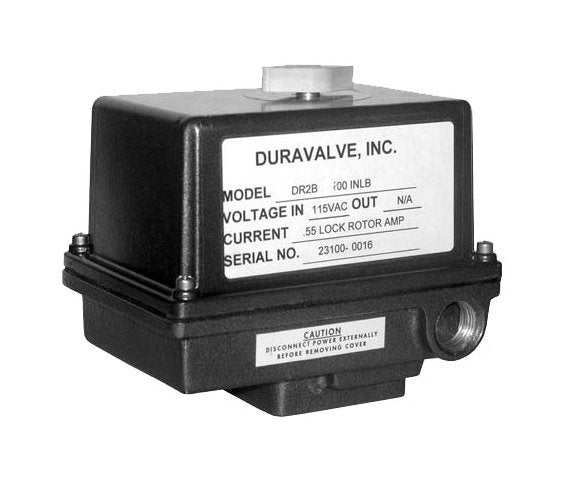

The Duravalve Electric Actuator is a reliable solution for precise valve control in industrial settings. With an output torque of 675 in-lbs, it ensures smooth and efficient operation. This actuator features a NEMA 4 watertight standard enclosure, stainless steel output shaft, and thermal overload protection for enhanced durability. With voltage options including 115 VAC, 240/24 VAC, and 12/24 VDC, it offers flexibility for various applications. The actuator also includes two independently adjustable limit switches, permanent lubrication, and CSA certification for quality assurance.
Product Specifications
Specifications 90 Deg Time
15 sec
Specifications Approximate Weight
13 lbs (NEMA 7 16)
Specifications Duty Cycles
25 %

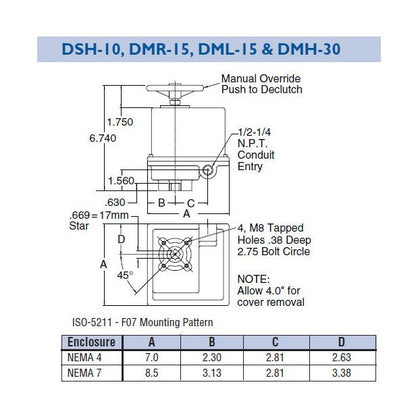

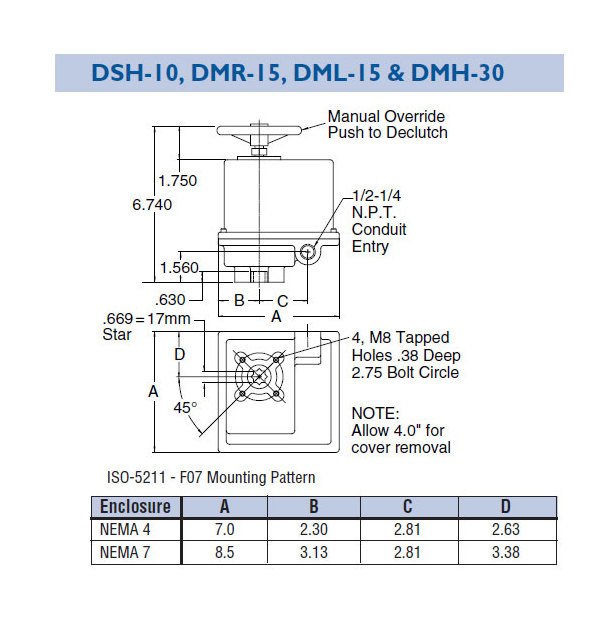

Specifications Iso 5211 Mtg Pattern
F07/17
Specifications Locked Rotor Current
0.75 A
Specifications Manual Override
STD. NEMA 4 (Optional NEMA 7)
Specifications Output Torque
675 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
