Duravalve Electric Actuator - High-Torque Industrial Solution
Duravalve Electric Actuator - High-Torque Industrial Solution
SKU:ACT-9388d5
Durable and versatile electric actuator with wide torque range, precise control, and optional features for industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - High-Torque Industrial Solution
$599.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - High-Torque Industrial Solution
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

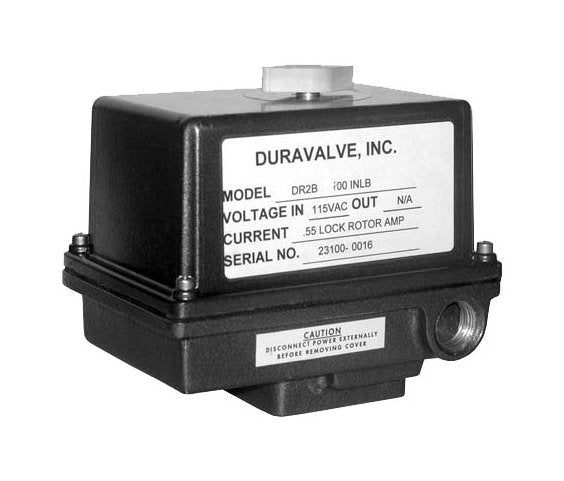

The Duravalve Electric Actuator is a robust solution designed for industrial applications, featuring a wide range of torque options from 100 to 5000 In-Lbs. It is constructed with durable materials including a cast aluminum enclosure with a thermally bonded powder coating and stainless steel components. This electric actuator offers precise control with adjustable limit switches, thermal overload protection, and permanent lubrication. With optional features like different voltages, motor brake, and extended duty motors, this actuator is versatile for various operational needs.
Product Specifications
Specifications 90 Deg Time
12 sec
Specifications Approximate Weight
30 lbs
Specifications Duty Cycles
100 %
Specifications Iso 5211 Mtg Pattern
SAE
Specifications Locked Rotor Current
1.5 A
Specifications Manual Override
STD.
Specifications Output Torque
2000 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
