Duravalve Electric Actuator - High Torque Performance
Duravalve Electric Actuator - High Torque Performance
SKU:ACT-5651f5
Duravalve Electric Actuator - Precision control with unmatched durability. Versatile, reliable, and CSA certified.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - High Torque Performance
$799.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - High Torque Performance
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

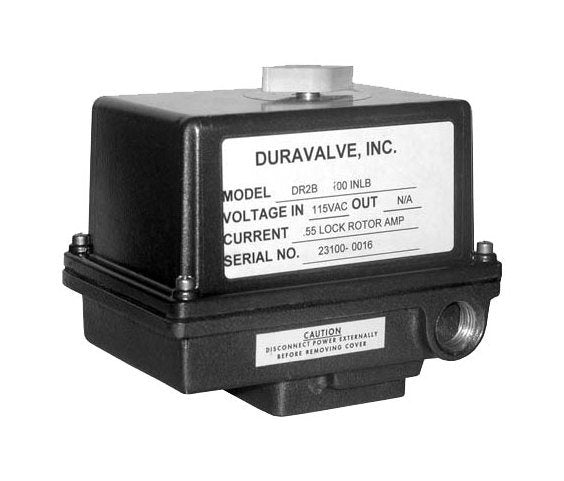

The Duravalve Electric Actuator is a robust solution designed for precision control in industrial settings. With output torque ranging from 100 to 5000 In-Lbs, this actuator delivers reliable performance. Encased in NEMA 4 Watertight standard enclosure (optional NEMA 7 Explosion-Proof), and constructed with durable materials including cast aluminum and stainless steel, this actuator ensures longevity in harsh environments. Equipped with thermal overload protection, adjustable limit switches, and multiple voltage options, it offers versatile functionality for diverse applications. From its permanent lubrication to CSA certification, this actuator is built to exceed industry standards.
Product Specifications
Specifications 90 Deg Time
30 sec
Specifications Approximate Weight
13 lbs (NEMA 7 16)
Specifications Duty Cycles
25 %

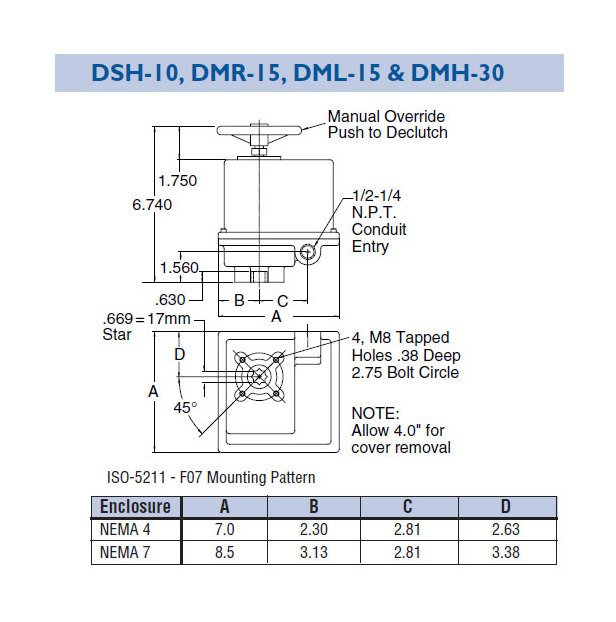

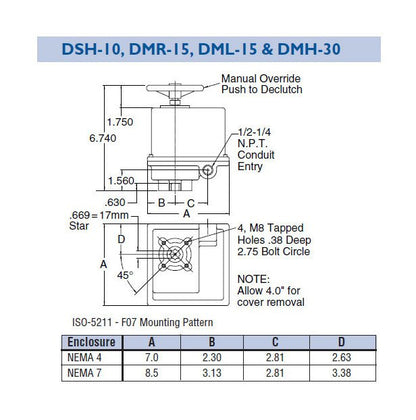

Specifications Iso 5211 Mtg Pattern
F07/17
Specifications Locked Rotor Current
1.1 A
Specifications Manual Override
STD. NEMA 4 (Optional NEMA 7)
Specifications Output Torque
1500 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
