Duravalve Electric Actuator - High Torque & Precision Control
Duravalve Electric Actuator - High Torque & Precision Control
SKU:ACT-22688a
Experience precision automation with the Duravalve Electric Actuator - ideal for reliable and efficient valve control.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - High Torque & Precision Control
$799.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - High Torque & Precision Control
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

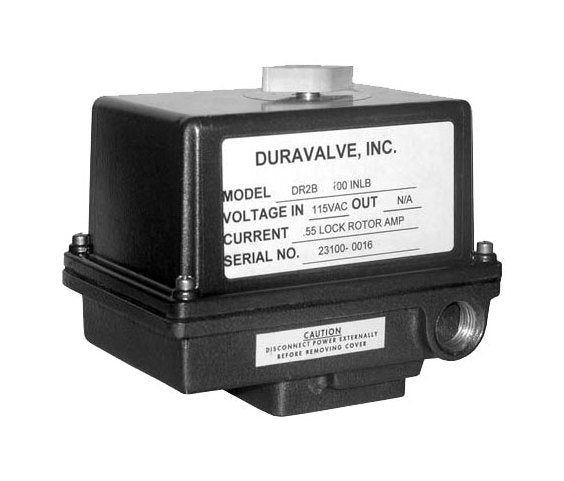

The Duravalve Electric Actuator is a top-of-the-line solution for precise valve automation. With 10 sizes available, it offers a wide torque range of 100-5000 In-Lbs, ensuring seamless operation in diverse applications. The durable construction features a cast aluminum enclosure with a thermally bonded coating, stainless steel output shaft, and fasteners. Equipped with advanced safety features like thermal overload protection and adjustable limit switches, this actuator guarantees reliable performance. Optional features include various voltages, heater-thermostat, additional limit switches, and motor brake for butterfly valves. Meet your automation needs with the Duravalve Electric Actuator, designed for efficiency and longevity.
Product Specifications
Specifications 90 Deg Time
2.5 sec
Specifications Approximate Weight
5 lbs
Specifications Duty Cycles
75 %
Specifications Iso 5211 Mtg Pattern
F03/09
Specifications Locked Rotor Current
0.55 A
Specifications Manual Override
STD. (Except NEMA 7 & DC Motors)
Specifications Output Torque
100 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
