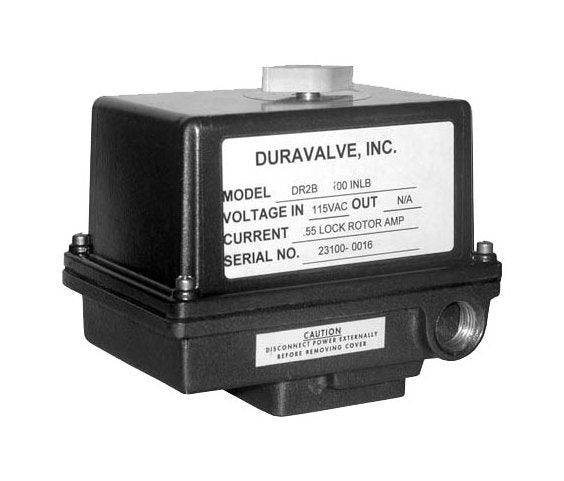

Duravalve Electric Actuator - Industrial Grade, NEMA 4 & 7 Certified
Duravalve Electric Actuator - Industrial Grade, NEMA 4 & 7 Certified
SKU:ACT-c13b3b
Reliable Duravalve Electric Actuator with 400 in-lbs torque, NEMA 4 & 7 certified, ideal for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - Industrial Grade, NEMA 4 & 7 Certified
$499.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - Industrial Grade, NEMA 4 & 7 Certified
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duravalve Electric Actuator is a robust industrial-grade solution designed for precise control and durability. With output torque of 400 in-lbs, it offers reliable performance in a range of applications. Featuring a standard motor operating at 115 VAC, 60Hz, and thermal overload protection, this actuator ensures safe and efficient operation. The enclosure is constructed with cast aluminum and a thermally bonded polyester powder coating for enhanced protection. Moreover, with options like additional limit switches, motor brake compatibility, and various voltage selections, this actuator can be customized for specific needs.
Product Specifications
Specifications 90 Deg Time
10 sec
Specifications Approximate Weight
13 lbs (NEMA 7 16)
Specifications Duty Cycles
25 %
Specifications Iso 5211 Mtg Pattern
F07/17
Specifications Locked Rotor Current
0.75 A
Specifications Manual Override
STD. NEMA 4 (Optional NEMA 7)
Specifications Output Torque
400 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
