Duravalve Electric Actuator - Industry-Grade Torque & Precision
Duravalve Electric Actuator - Industry-Grade Torque & Precision
SKU:ACT-75683e
Get industry-grade torque & precision with the Duravalve Electric Actuator. CSA certified with thermal protection & precise control options.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Duravalve Electric Actuator - Industry-Grade Torque & Precision
$599.99
Quantity: 1
Claim Your Seller Account
Duravalve Electric Actuator - Industry-Grade Torque & Precision
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

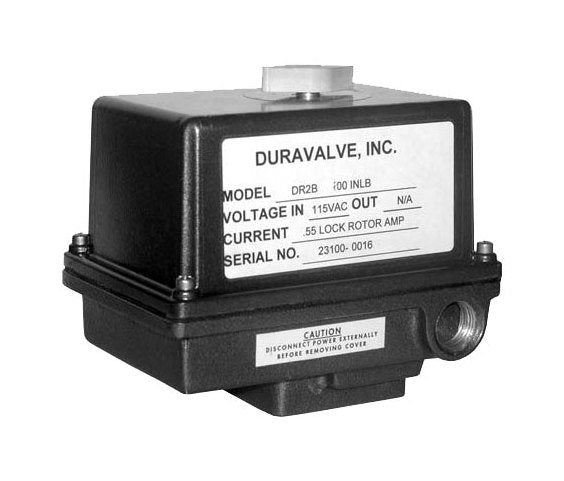

The Duravalve Electric Actuator offers unmatched precision and durability, with a wide range of torque options from 100 to 3840 in·lbs, making it suitable for diverse applications. Constructed with high-quality materials like cast aluminum and stainless steel, this actuator ensures reliability in harsh environments. It features thermal overload protection, limit switches for precise control, and various voltage options for flexibility. With CSA certification and optional features like motor brake and additional limit switches, the Duravalve Electric Actuator is a top choice for institutional and government procurement needs.
Product Specifications
Specifications 90 Deg Time
14 sec
Specifications Approximate Weight
30 lbs
Specifications Duty Cycles
100 %
Specifications Iso 5211 Mtg Pattern
SAE
Specifications Locked Rotor Current
2.9 A
Specifications Manual Override
STD.
Specifications Output Torque
3840 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
