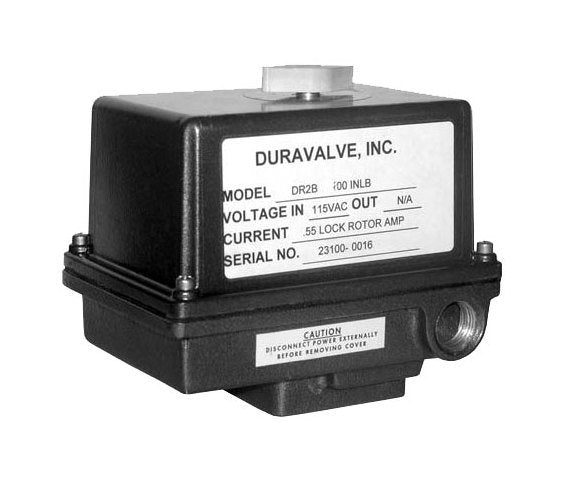

DuraValve High Torque Electric Actuator
DuraValve High Torque Electric Actuator
SKU:ACT-5e3cb7
Reliable DuraValve Electric Actuator with 100-5000 in-lbs torque range, ideal for precise control in institutional and industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
DuraValve High Torque Electric Actuator
$799.99
Quantity: 1
Claim Your Seller Account
DuraValve High Torque Electric Actuator
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

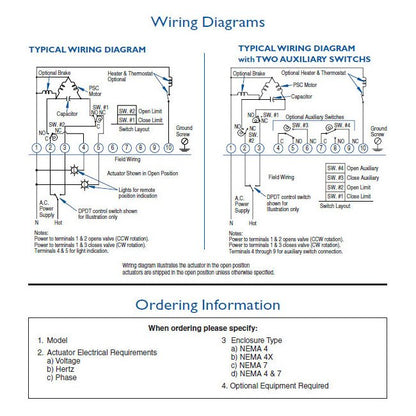

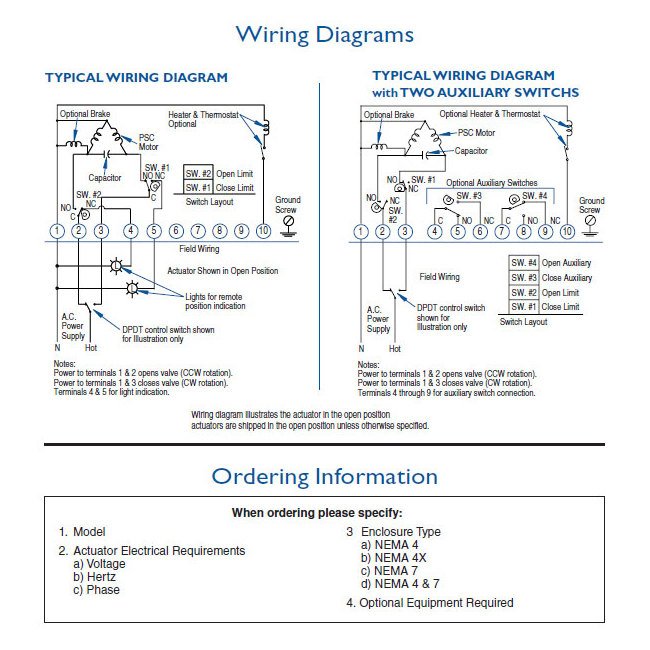

The DuraValve Electric Actuator offers reliable and precise control with a torque range of 100-5000 in-lbs. Featuring durable construction with a cast aluminum enclosure and stainless steel components, this actuator is designed for versatile performance in various applications. With standard features like thermal overload protection, light indication wiring, and adjustable limit switches, it ensures efficient operation. Optional features such as different voltages, heater-thermostat, extra limit switches, and motor brake cater to specific valve requirements. CSA certified and meeting rigorous standards, the DuraValve Electric Actuator is ideal for institutional and industrial settings.
Product Specifications
Specifications 90 Deg Time
68 sec
Specifications Approximate Weight
100 lbs
Specifications Duty Cycles
100 %
Specifications Iso 5211 Mtg Pattern
SAE
Specifications Locked Rotor Current
2.9 A
Specifications Manual Override
STD.
Specifications Output Torque
5000 in·lbs
Specifications Standard Motor
115 VAC, 60Hz, 1 Ph. PSC
