Precision DV-06 BSPP Flow Control Valve with Fluoroelastomer Seal for reliable and accurate flow control in diverse applications.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
DV-06 BSPP Flow Control Valve with Fluoroelastomer Seal
$139.99
Quantity: 1
Claim Your Seller Account
DV-06 BSPP Flow Control Valve with Fluoroelastomer Seal
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

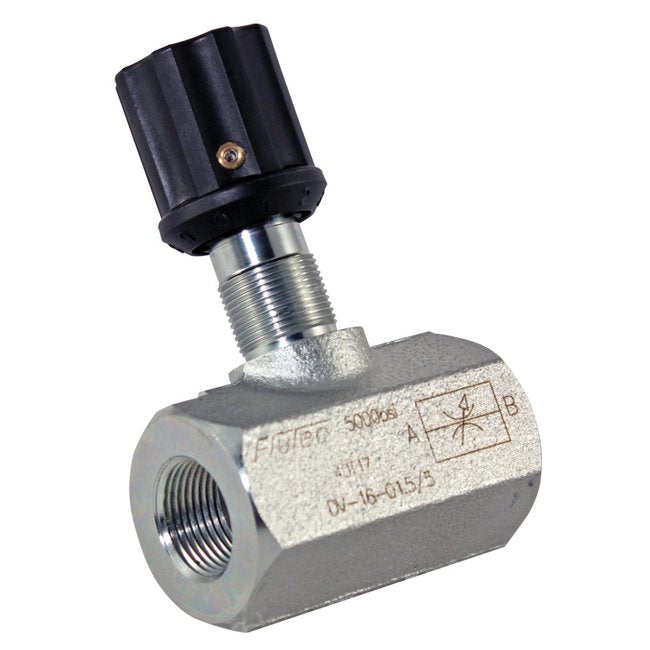

The DV-06 BSPP Flow Control Valve is a precision-engineered needle valve designed for optimal flow control. With BSPP Threaded Connections and a Fluoroelastomer Seal, this valve ensures secure and leak-free performance. Constructed from Carbon Steel with Zinc Plating, it offers durable and reliable operation in a wide temperature range. The color-coded spindle and unique safety design make it easy to use and maintain, while the DIN 3852 certification guarantees compliance with industry standards.
Product Specifications

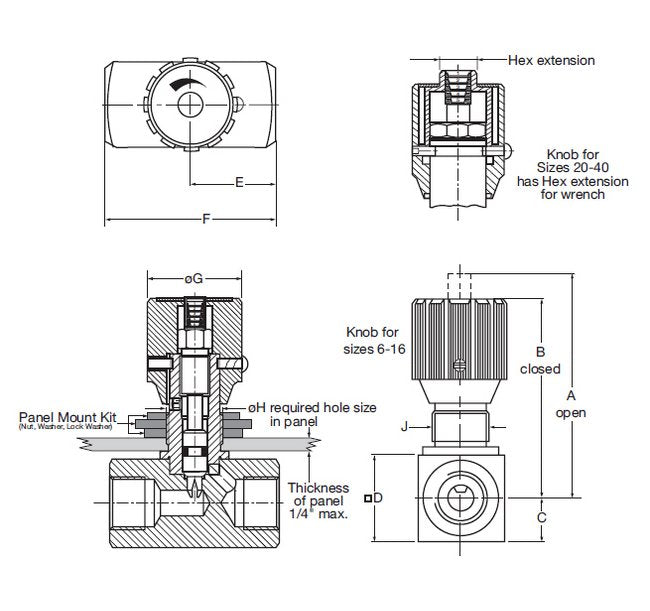

Dimensions Diameter G
0.94 in | 24 mm
Dimensions Diameter H
0.51 in | 13 mm
Dimensions Dimension A
2.16 in | 55 mm
Dimensions Dimension B
1.97 in | 50 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension D
0.63 in | 16 mm
Dimensions Dimension E
0.75 in | 19 mm
Dimensions Dimension F
1.50 in | 38 mm
Dimensions Pipe Outer Diameter Od
0.405 in
Dimensions Thread Size
G1/8
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-06-01.X/0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
06
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.12 kg | 0.26 lb
