The DV-06 NPTF Flow Control Valve is a high-performance needle valve designed for precision flow control applications. Featuring SAE O-Ring connections and NPTF thread compatibility, this valve ensures secure sealing and efficient operation. The color-coded spindle allows for easy and accurate flow adjustment, while the unique safety spindle design enhances user safety. With a robust construction of carbon steel and fluoroelastomer seals, this valve is built to withstand extreme pressures of up to 5000 psi. Ideal for manifold and inline mounting, this valve meets ANSI standards, ensuring reliability and compliance in industrial and institutional settings.
Product Specifications
Dimensions Diameter G
0.94 in | 24 mm
Dimensions Diameter H
0.51 in | 13 mm
Dimensions Dimension A
2.16 in | 55 mm
Dimensions Dimension B
1.97 in | 50 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension D
0.63 in | 16 mm
Dimensions Dimension E
0.75 in | 19 mm
Dimensions Dimension F
1.50 in | 38 mm
Dimensions Dimension J
Pg 7 Thread
Dimensions Pipe Outer Diameter Od
0.405 in
Dimensions Pipe Size
1/8 in
Note 0

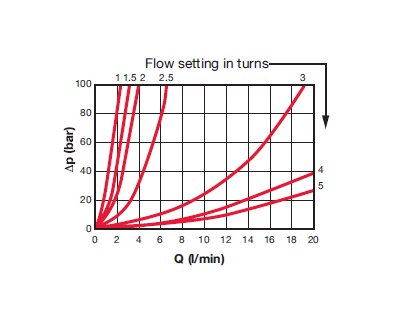

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-06-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
06
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV06Part Number: 00705300
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.12 kg | 0.26 lb
