DV-06 NPTF Flow Control Valve - Needle Valve in Carbon Steel
DV-06 NPTF Flow Control Valve - Needle Valve in Carbon Steel
SKU:ACC-0233ab
Experience precision flow control with the DV-06 NPTF Flow Control Valve. Durable carbon steel construction for industrial reliability.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DV-06 NPTF Flow Control Valve - Needle Valve in Carbon Steel
$99.99
Quantity: 1
Claim Your Seller Account
DV-06 NPTF Flow Control Valve - Needle Valve in Carbon Steel
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-06 NPTF Flow Control Valve is a precision-engineered needle valve designed for optimal flow control. Featuring NPTF threaded connections and a unique safety spindle design, this valve ensures precise adjustment and reliable performance in various industrial applications. Constructed with carbon steel housing and fluoroelastomer seals, it offers durability and resistance to extreme conditions. With an operating pressure of 5000 psi and flow rate of 80 gpm, this valve guarantees efficient fluid regulation. Ideal for manifold mounting and panel installation, it meets ANSI standards for quality assurance.
Product Specifications
Dimensions Diameter G
0.94 in | 24 mm
Dimensions Diameter H
0.51 in | 13 mm
Dimensions Dimension A
2.16 in | 55 mm
Dimensions Dimension B
1.97 in | 50 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension D
0.63 in | 16 mm
Dimensions Dimension E
0.75 in | 19 mm
Dimensions Dimension F
1.50 in | 38 mm
Dimensions Dimension J
Pg 7 Thread
Dimensions Pipe Outer Diameter Od
0.405 in
Dimensions Pipe Size
1/8 in
Note 0

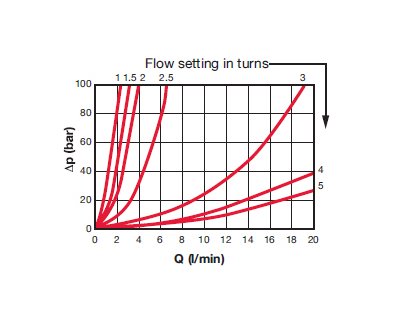

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-06-01.X/5-S
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
06
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV06Part Number: 00705300
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.12 kg | 0.26 lb
Supplementary Details 0
Panel Mounting Kit
