DV-08 BSPP Flow Control Valve for Precision Flow Regulation
DV-08 BSPP Flow Control Valve for Precision Flow Regulation
SKU:ACC-b4cb35
Ensure precise flow regulation with the DV-08 BSPP Flow Control Valve. Compliant with DIN 3853 standards, it offers reliability and durability for industrial applications.
Regular price
$84.99
Regular price
Sale price
$84.99
Unit price
per
Initiate Order
DV-08 BSPP Flow Control Valve for Precision Flow Regulation
$84.99
Quantity: 1
Claim Your Seller Account
DV-08 BSPP Flow Control Valve for Precision Flow Regulation
$84.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

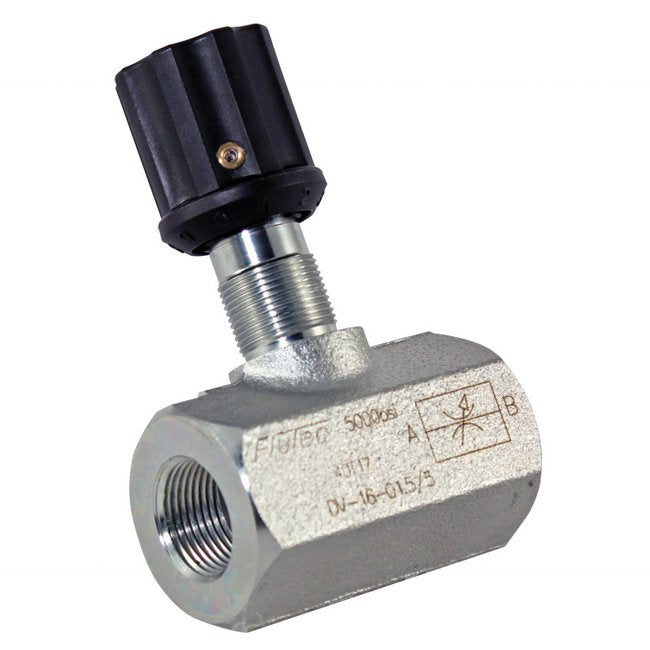

The DV-08 BSPP Flow Control Valve is a versatile solution for precise flow regulation in industrial applications. With SAE O-Ring, BSPP Threaded Connections, and a unique safety spindle design, this valve ensures reliable performance. It features a color-coded spindle for accurate flow control, manifold mounting, and provision for panel mounting. Compliant with DIN 3853 standards, this needle valve operates at temperatures ranging from -4 to 212 °F and can handle an operating pressure of 5000 psi. Designed with Fluoroelastomer seals and carbon steel construction, it guarantees durability and efficiency.
Product Specifications

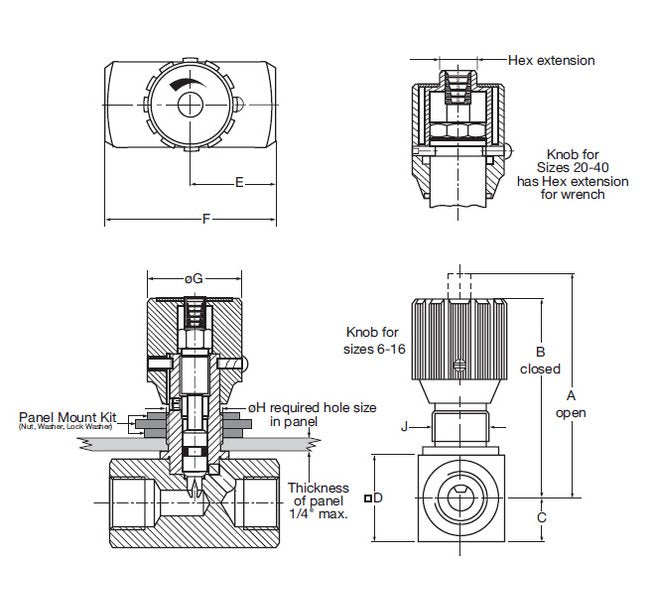

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.83 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
0.94 in | 24 mm
Dimensions Dimension F
1.89 in | 48 mm
Dimensions Pipe Outer Diameter Od
0.540 in
Dimensions Thread Size
G1/4
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3853
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-08-01.X/0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.25 kg | 0.55 lb
