The DV-08 NPTF Flow Control Valve is a premium-grade needle valve designed for precise flow control. Featuring NPTF threaded connections and a unique safety spindle design, this valve ensures reliable performance in industrial settings. With a flow capacity of 80 gpm and an operating pressure of 5000 psi, it meets the demanding requirements of various applications. The valve's carbon steel construction, fluoroelastomer seals, and zinc-plated finish guarantee durability and resistance to harsh conditions. Ideal for panel mounting with color-coded spindle for easy operation, it complies with American National Standards Institute (ANSI) standards for exceptional quality assurance.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.83 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
0.94 in | 24 mm
Dimensions Dimension F
1.89 in | 48 mm
Dimensions Dimension J
Pg 11 Thread
Dimensions Pipe Outer Diameter Od
0.540 in
Dimensions Pipe Size
1/4 in
Note 0

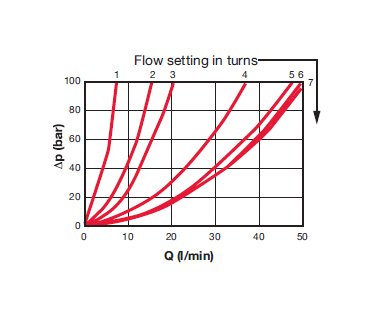

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-08-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV08Part Number: 00705310
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.25 kg | 0.55 lb
