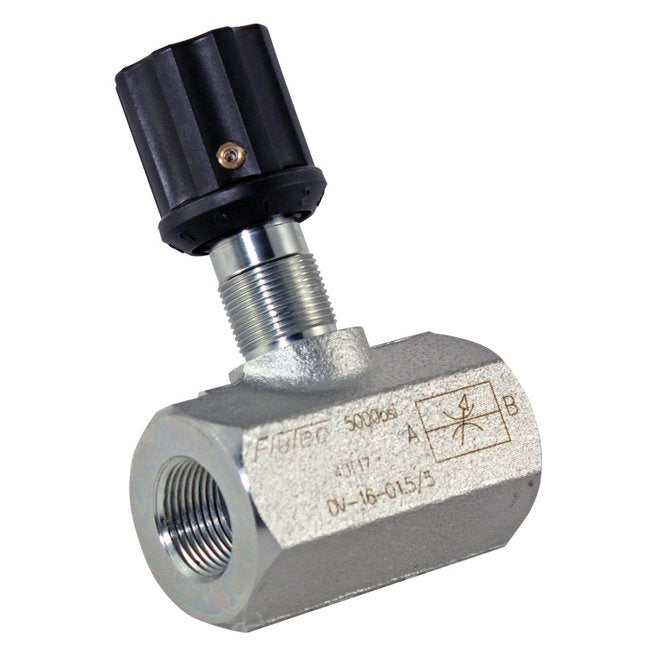

DV-10 Needle Flow Control Valve with BSPP Thread
DV-10 Needle Flow Control Valve with BSPP Thread
SKU:ACC-fdd2a2
DV-10 Needle Flow Control Valve with BSPP thread, color-coded spindle, and DIN 3854 certified for precise flow control in industrial settings.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DV-10 Needle Flow Control Valve with BSPP Thread
$99.99
Quantity: 1
Claim Your Seller Account
DV-10 Needle Flow Control Valve with BSPP Thread
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-10 Needle Flow Control Valve with BSPP thread offers precise flow control with color-coded spindle, manifold mounting, and safety spindle design. Designed with Fluoroelastomer seals, Carbon Steel construction, and DIN 3854 certification, ensuring durability, temperature resistance (-4 to 212 °F), and compliance with industry standards. Perfect for industrial applications requiring 80 gpm flow at 5000 psi.
Product Specifications

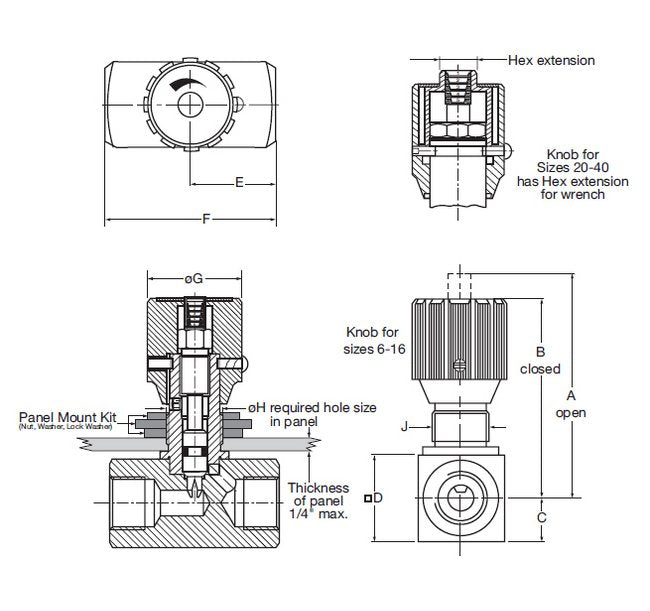

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 74 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.14 in | 29 mm
Dimensions Dimension F
2.28 in | 58 mm
Dimensions Pipe Outer Diameter Od
0.675 in
Dimensions Thread Size
G3/8
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3854
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-10-01.X/0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.4 kg | 0.88 lb
