DV-10 NPTF Flow Control Valve - Needle Valve for In-Line Control

DV-10 NPTF Flow Control Valve - Needle Valve for In-Line Control

ACC-4b8ea5

DV-10 NPTF Flow Control Valve - Precision Needle Valve for Reliable Flow Adjustment - Ideal for Panel Mounting

$129.99
$129.99
Sale

Initiate Order

DV-10 NPTF Flow Control Valve - Needle Valve for In-Line Control

DV-10 NPTF Flow Control Valve - Needle Valve for In-Line Control

$129.99

Quantity: 1

Claim Your Seller Account

DV-10 NPTF Flow Control Valve - Needle Valve for In-Line Control

DV-10 NPTF Flow Control Valve - Needle Valve for In-Line Control

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DV-10 NPTF Flow Control Valve is a precision-engineered needle valve designed for precise flow control in various applications. Constructed from durable carbon steel with Fluoroelastomer seals, it ensures reliability in demanding conditions. This valve features NPTF ANSI B1.20.3 threaded connections, a color-coded spindle for accurate flow adjustment, and a unique safety spindle design. With a flow capacity of 80 gpm and an operating pressure of 5000 psi, it meets high-performance standards for industrial use. The valve also incorporates a zinc-plated finish, ensuring corrosion resistance and longevity. Ideal for panel mounting, this valve offers seamless integration into systems requiring efficient flow control.

Product Specifications

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 74 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.14 in | 29 mm
Dimensions Dimension F
2.28 in | 58 mm
Dimensions Dimension J
Pg 11 Thread
Dimensions Pipe Outer Diameter Od
0.675 in
Dimensions Pipe Size
3/8 in
Note 0

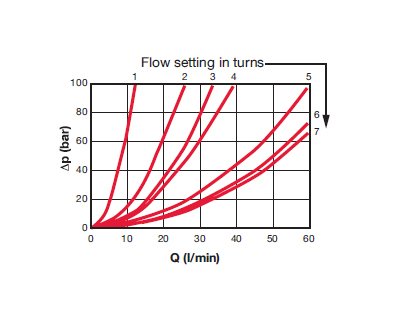

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-10-11.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV06Part Number: 00705300
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.4 kg | 0.88 lb
