The DV-12 BSPP Flow Control Valve is a precision-engineered needle valve designed for optimal flow control. Featuring a BSPP threaded port configuration and Fluoroelastomer seal material, this valve ensures reliable performance in a wide range of applications. Its color-coded spindle allows for accurate adjustment, while the unique safety spindle design enhances operational safety. With a maximum flow of 80 gpm and an operating pressure of 5000 psi, this valve is suitable for demanding industrial environments. DIN 3855 certification guarantees quality and compliance with industry standards.

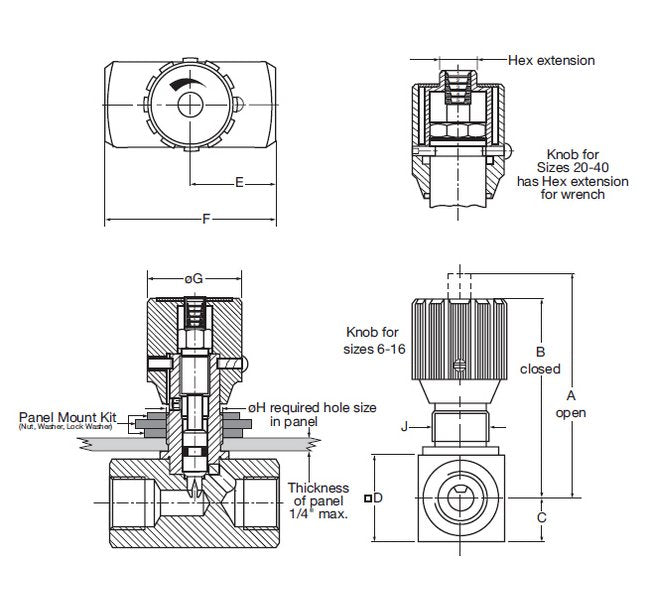

Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 2.0 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.34 in | 34 mm
Dimensions Dimension F
2.68 in | 68 mm
Dimensions Pipe Outer Diameter Od
0.840 in
Dimensions Thread Size
G1/2
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3855
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-12-01.X/0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.7 kg | 1.5 lb
