The DV-12 NPTF Flow Control Valve is a top-tier solution for precise flow control in industrial settings. Featuring NPTF threaded connections, a manifold mounting option, and a color-coded spindle for accuracy, this valve ensures efficient fluid management. Its unique safety spindle design and panel mounting provision enhance ease of use and installation. Built with high-quality materials, including Fluoroelastomer (FPM) seals and carbon steel construction, this valve withstands operating pressures up to 5000 psi and a flow rate of 80 gpm. Meeting ANSI standards, this valve guarantees reliability and performance.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 2.0 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.34 in | 34 mm
Dimensions Dimension F
2.68 in | 68 mm
Dimensions Dimension J
Pg 16 Thread
Dimensions Pipe Outer Diameter Od
1.050 in
Dimensions Pipe Size
1/2 in
Note 0

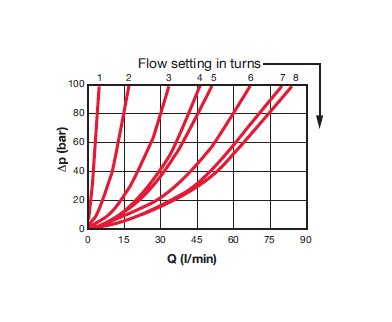

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-12-01.X/5-S
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV12Part Number: 00705302
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.7 kg | 1.5 lb
Supplementary Details 0
Panel Mounting Kit
