The DV-12 NPTF Flow Control Valve is a precision-engineered needle valve designed for accurate flow control in industrial applications. Featuring NPTF threaded connections and a unique safety spindle design, this valve ensures reliable performance and ease of installation. Constructed with carbon steel and fluoroelastomer seals, it offers durability and resistance to high pressures and temperatures. With a flow rate of 80 gpm and an operating pressure of 5000 psi, this valve is suitable for a wide range of fluid control situations. Compliant with ANSI standards, this valve guarantees quality and safety for your operational needs.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 2.0 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.34 in | 34 mm
Dimensions Dimension F
2.68 in | 68 mm
Dimensions Dimension J
Pg 16 Thread
Dimensions Pipe Outer Diameter Od
1.050 in
Dimensions Pipe Size
1/2 in
Note 0

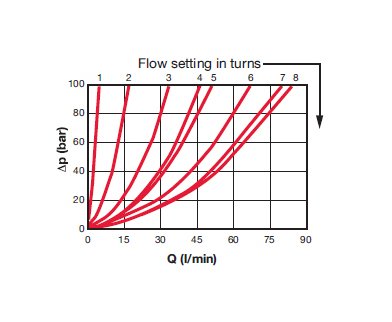

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-12-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.7 kg | 1.5 lb
