DV-12 SAE Flow Control Valve - Needle Type
DV-12 SAE Flow Control Valve - Needle Type
SKU:ACC-d70911
Get optimal flow control with the DV-12 SAE Flow Control Valve. Precision-engineered for performance and safety, this valve meets ISO standards and offers panel mounting capability.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DV-12 SAE Flow Control Valve - Needle Type
$249.99
Quantity: 1
Claim Your Seller Account
DV-12 SAE Flow Control Valve - Needle Type
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-12 SAE Flow Control Valve is engineered for precise flow control, featuring SAE O-Ring, NPT or BSPP Threaded Connections, and a unique safety spindle design. With a color-coded spindle for accuracy, manifold mounting, and cartridge type construction, this valve ensures reliable performance. Made of carbon steel with fluoroelastomer seals, it operates at -4 to 212 ºF under pressures up to 5000 psi. Compliant with International Organization for Standardization (ISO) standards, it includes a panel mounting provision for added versatility.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 2.0 mm
Dimensions Dimension A
3.62 in | 92 mm
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
1.34 in | 34 mm
Dimensions Dimension F
2.68 in | 68 mm
Dimensions Dimension J
Pg 16 Thread
Dimensions Thread Size
3/4-16 UNF
Note 0

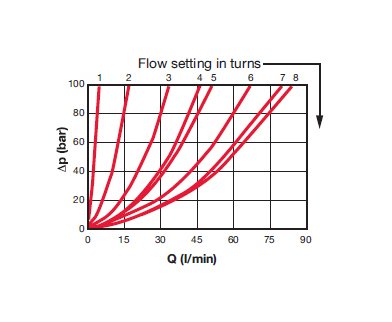

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-12-01.X/12-S
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
12
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV12Part Number: 00705302
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-6
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.7 kg | 1.5 lb
Supplementary Details 0
Panel Mounting Kit
