DV-12 SAE Flow Control Valve [SAEJ1926, ISO 725, Needle Valve]

Name: DV-12 SAE Flow Control Valve [SAEJ1926, ISO 725, Needle Valve]
Brand: HYDAC Technology Corporation
SKU: ACC-23b9d2
Price: 129.99 USD
Availability: OutOfStock

SKU:ACC-23b9d2

Enhance flow control with the DV-12 SAE Needle Valve - SAE O-Ring ports, 80 gpm flow, and 5000 psi operating pressure. ISO certified.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DV-12 SAE Flow Control Valve is a precision-engineered solution designed for optimal flow control in industrial settings. Featuring SAE O-Ring connections and a unique safety spindle design, this valve ensures accurate and reliable performance. With a high flow capacity of 80 gpm and an operating pressure of 5000 psi, it is constructed from carbon steel with zinc plating for durability. Ideal for inline mounting, this valve meets International Organization for Standardization (ISO) certifications, making it a trusted choice for applications requiring precise fluid handling.

Product Specifications

Dimensions Diameter G

1.50 in | 38 mm

Dimensions Diameter H

0.91 in | 2.0 mm

Dimensions Dimension A

3.62 in | 92 mm

Dimensions Dimension B

3.23 in | 82 mm

Dimensions Dimension C

0.69 in | 17.5 mm

Dimensions Dimension D

1.38 in | 35 mm

Dimensions Dimension E

1.34 in | 34 mm

Dimensions Dimension F

2.68 in | 68 mm

Dimensions Dimension J

Pg 16 Thread

Dimensions Thread Size

3/4-16 UNF

Note 0

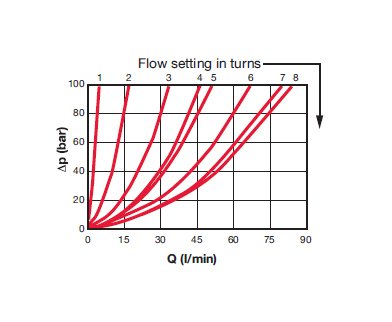

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ÂºF / 50 ÂºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.

Specifications Bun

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Flow

80 gpm

Specifications Housing Material

Carbon Steel

Specifications Industry Standardscertifications

International Organization for Standardization (ISO)

Specifications Material

Carbon Steel

Specifications Model Code Description

DV-12-01.X/12

Specifications Mounting Type

Inline Mounting

Specifications Nominal Size

Specifications Operating Pressure

5000 psi

Specifications O Ring Material

Fluoroelastomer (FPM)

Specifications Port Configuration

SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing

Specifications Product

FLOW CONTROL VALVES

Specifications Product Group Family

FLOW CONTROL VALVES

Specifications Seal Material

Fluoroelastomer (FPM)

Specifications Temperature Range At Full Pressure Max

-4 to 212 ÂºF

Specifications Tube Size

-6

Specifications Type

Needle

Specifications Valve Operator

Knob

Specifications Weight

0.7 kg | 1.5 lb
